| Type of Product | 2 P15 A Round Rubber Plug (With Band) |
| Model No | MP2506-N |
| Monotaro ID | 10241305 |
| Type | Plug |
Type of Product |
2 P15 A Round Rubber Plug (With Band) |
Model No |
MP2506-N |
Monotaro ID |
10241305 |
Type |
Plug |
Rated Voltage (V) |
125 |
Rated Current (A) |
15 |
Shape |
Flat Blade Type |
Applicable crimp terminal |
(0.75 to 1.25mm² )R1.25-3.5, (2mm² )R2-3.5 |

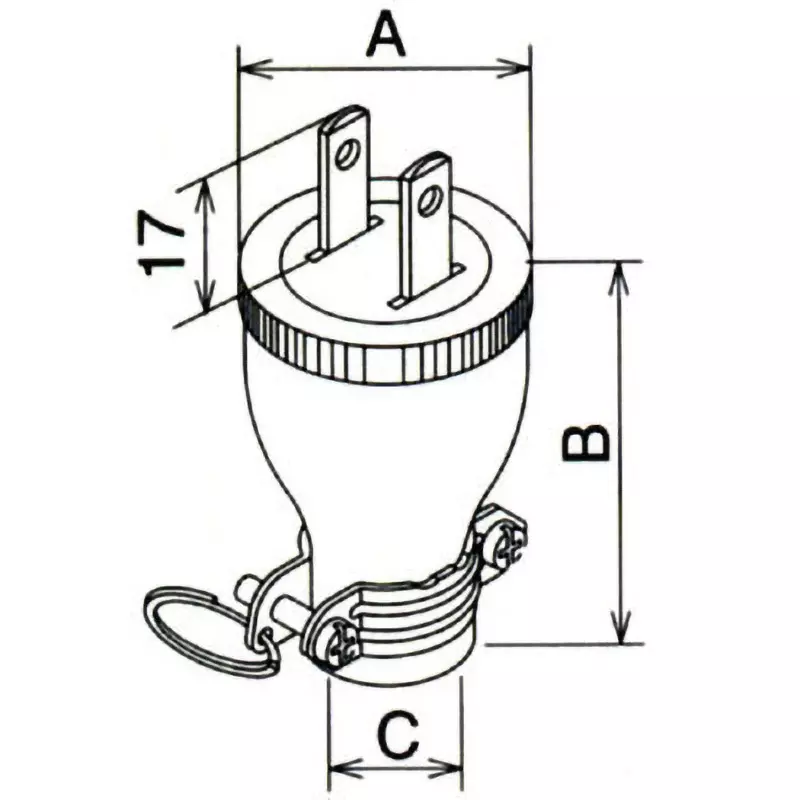

Dimension C (Φmm) |
7.5 to 12 |

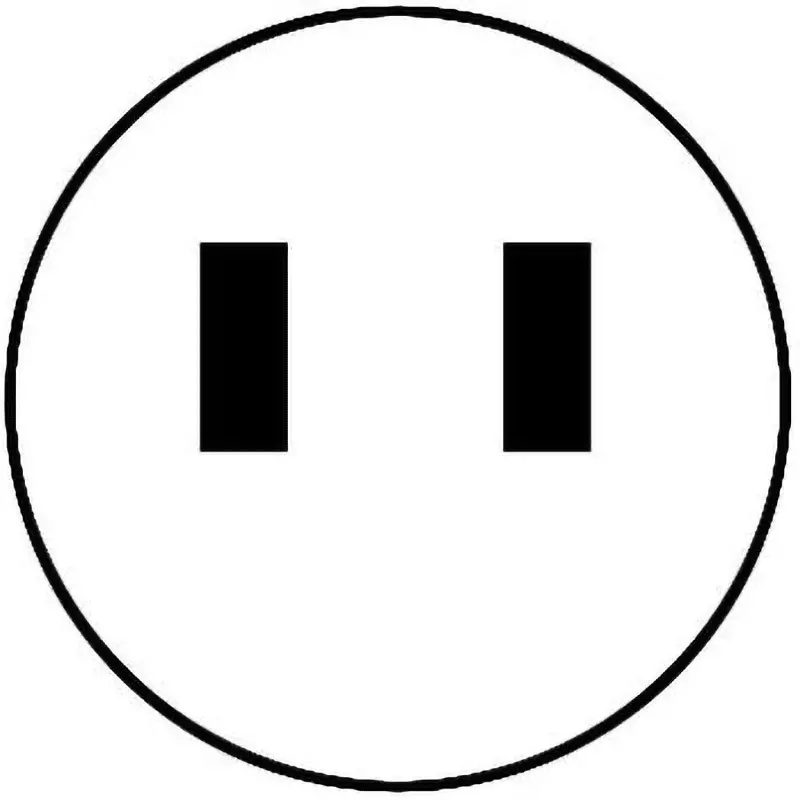

Outlet shape |
2P 15A 125V |
No. of Pole |
2P |
Mass (g) |
30 |
Dimension A (Φmm) |
32 |
Dimensions B (mm) |
50 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Compatible Cable |
1CT・2CT・2RNCT・2PNCT・VCT・VCT(S)：0.75 to 2 VCTF・VCTF(S)：2 CTF・RNCTF：1.25・2 |
Name of Manufacturer/Packer/Importer |
Meikosha Co., Ltd. |
Pack of |
1 Pcs |
Trusco Part No. |
255-3732 |
Conform to |
RoHS |
