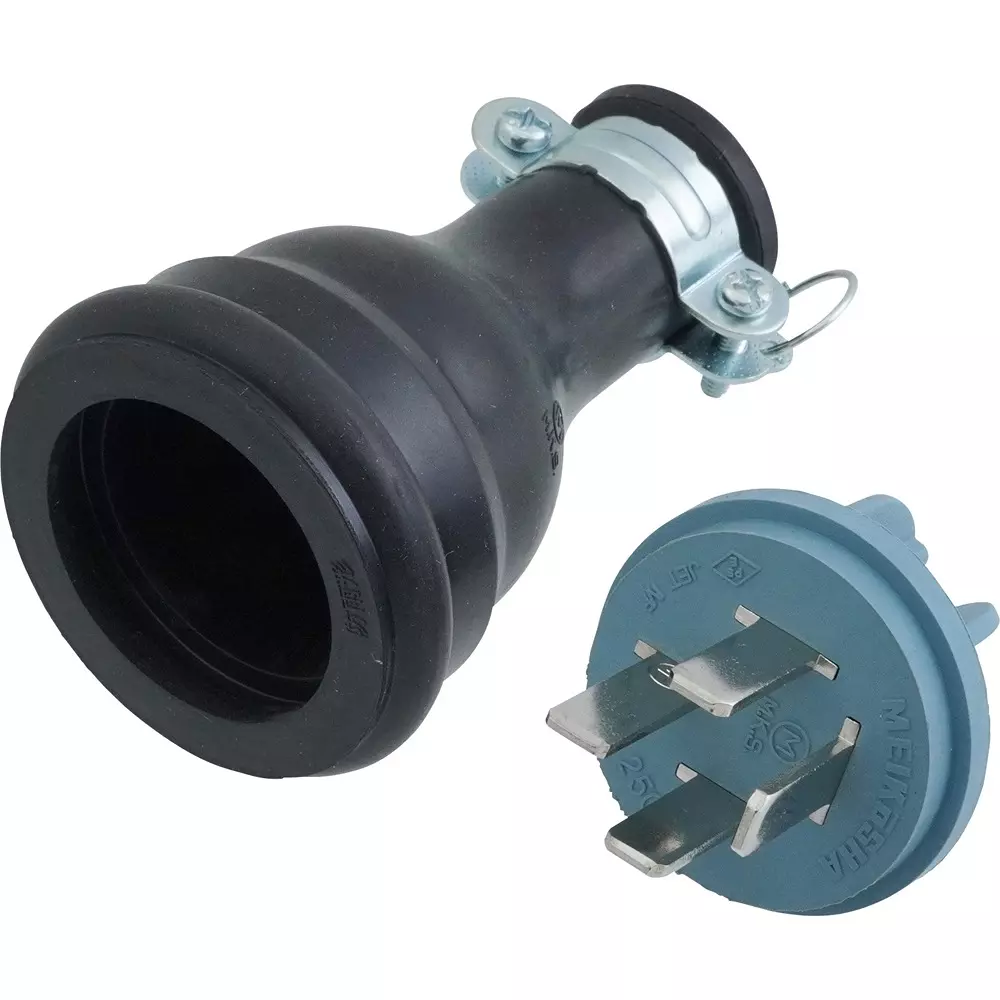

| Type of Product | Grounding 3 P20 A Waterproof Plug |
| Model No | MP2520 |
| Monotaro ID | 10241332 |
| Type | Plug |
Type of Product |
Grounding 3 P20 A Waterproof Plug |
Model No |
MP2520 |
Monotaro ID |
10241332 |
Type |
Plug |
Rated Voltage (V) |
250 |
Rated Current (A) |
20 |
Shape |
Flat Blade Type |
Applicable crimp terminal |
(3.5mm² )R3.5-4, (5.5mm² )R5.5-4 |

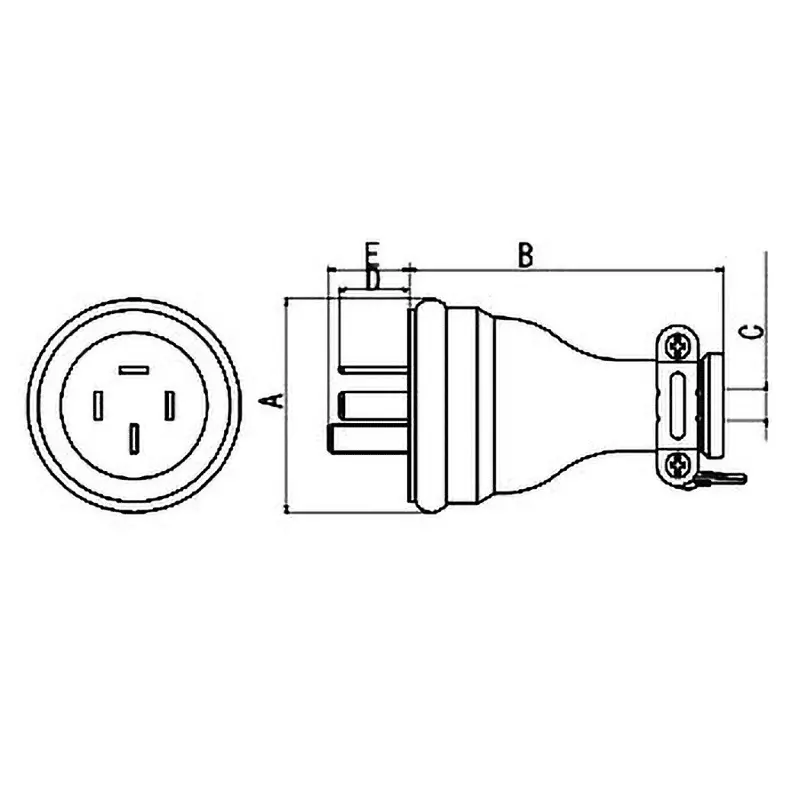

Dimension C (Φmm) |
14 to 17.5 |
Outlet shape |
Ground 3P 20A 250V |
No. of Pole |
Ground 3P |
Mass (g) |
150 |
Dimension A (Φmm) |
61 |
Dimensions E (mm) |
23 |
Dimensions B (mm) |
90 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Compatible Cable |
2CT・2RNCT・2PNCT・VCT・VCT(S)：3.5・5.5 |
Dimensions D (mm) |
20 |
Name of Manufacturer/Packer/Importer |
Meikosha Co., Ltd. |
Pack of |
1 Pcs |
Trusco Part No. |
255-3716 |
Conform to |
RoHS |
Specifications |
3M terminal: Uses a terminal screw with terminal safety washer that allows 3 types of connection methods (sandwiching, crimping, winding): Prevents cord fraying. Toothed washer (detent). A single washer solves the effect of a spring washer. The washer is designed not to fall off the terminal screw. |
