| Type of Product | Grounded 3 P20 A Waterproof Connector Body |
| Model No | MC2615 |
| Monotaro ID | 10241411 |
| Type | body |
Type of Product |
Grounded 3 P20 A Waterproof Connector Body |
Model No |
MC2615 |
Monotaro ID |
10241411 |
Type |
body |
Rated Voltage (V) |
250 |
Rated Current (A) |
20 |
Shape |
Flat blade |
Applicable crimp terminal |
(3.5mm² )R3.5-4, (5.5mm² )R5.5-4 |

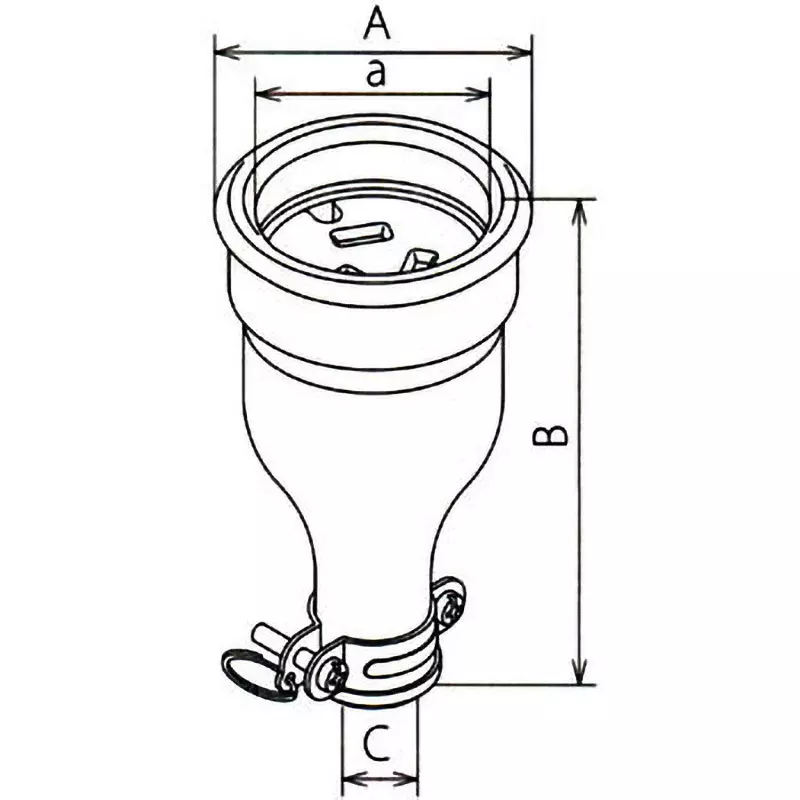

Dimension C (Φmm) |
14 to 17.5 |
Outlet shape |
Ground 3P 20A 250V |
No. of Pole |
Ground 3P |
Mass (g) |
225 |
Dimension A (Φmm) |
73 |
Dimensions B (mm) |
130 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Compatible Cable |
2CT・2RNCT・2PNCT・VCT・VCT(S)：3.5・5.5 |
Name of Manufacturer/Packer/Importer |
Meikosha Co., Ltd. |
Pack of |
1 Pcs |
Trusco Part No. |
255-3724 |
Conform to |
RoHS |
Specifications |
3M terminals: Uses terminal screws with terminal safety washers that can be used in three types of connection methods (pinching, crimping terminals, and winding): Prevents cords from fraying. Toothed washer (detent). Solve the effect of spring washer with one washer. The washer does not fall off the terminal screw. |
