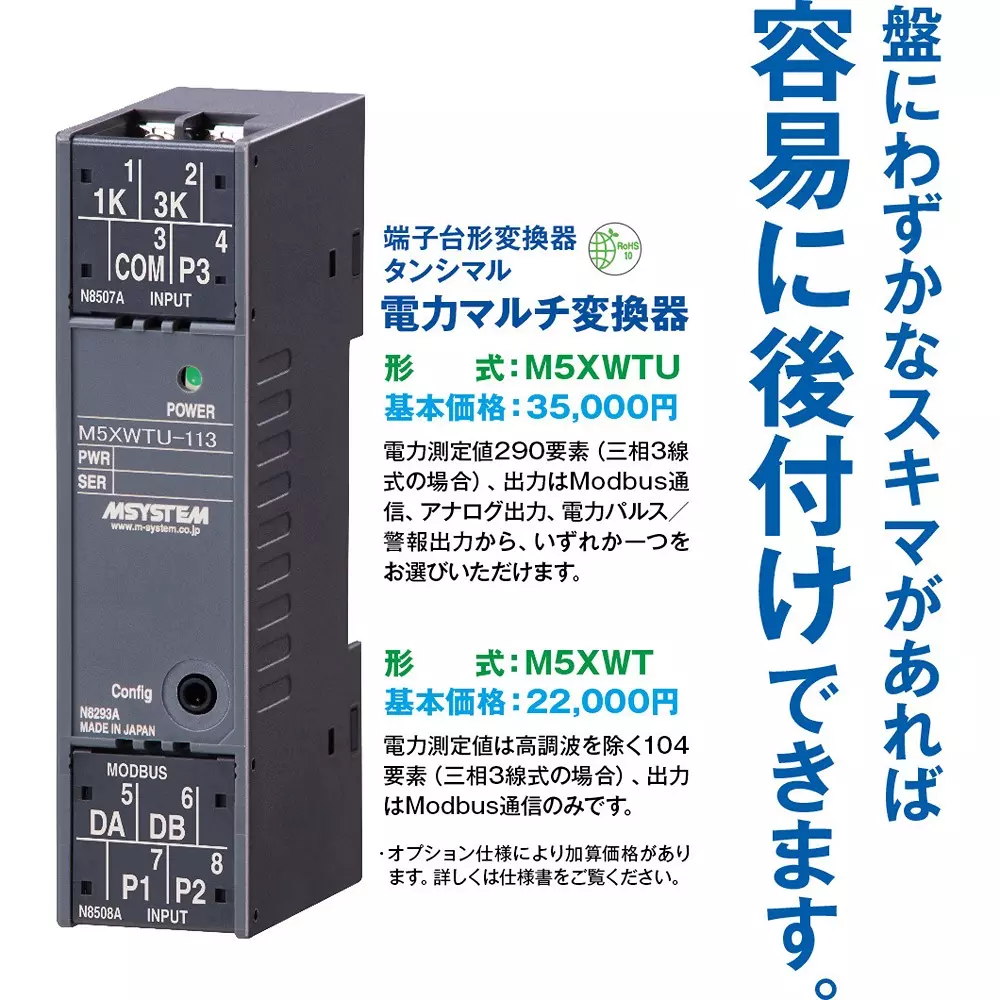

| Type of Product | Power Multitansimal |
| Model No | M5XWT-113 |
| Monotaro ID | 50265384 |
| Type | Single-phase two-wire system, single-phase three-wire system, three-phase three-wire system |
Type of Product |
Power Multitansimal |
Model No |
M5XWT-113 |
Monotaro ID |
50265384 |
Type |
Single-phase two-wire system, single-phase three-wire system, three-phase three-wire system |
Material |
Terminal screw: Nickel plated iron (standard) or stainless steel, Housing: Flame-retardant black resin |
Rated Voltage (V) |
240 AC |
Mass (g) |
About 80 |
Mounting |
DIN rail mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Connection Type |
M3.5 screw terminal connection (tightening torque 0.8N . m) |
Atmosphere |
No corrosive gases or heavy dust |
Name of Manufacturer/Packer/Importer |
MG Co., Ltd. |
Operation Ambient Temperature (°C) |
-20 to 65 |
Input Voltage (V) |
240 AC/CLSE |
Input Range |
80-260 V AC (phase voltage range for single-phase 3-wire is 80-130V) |
Structure |
Small terminal block structure |
Isolation |
Between current input/voltage input and Modbus |
External Interface |
Modbus co mmunication |
Operating Ambient Humidity (% RH) |
30-90 |
