| Type of Product | Pin Terminal With Insulating Sleeve |
| Model No | E0506-WHITE |
| Monotaro ID | 6716815 |
| Color | White |
Type of Product |
Pin Terminal With Insulating Sleeve |
Model No |
E0506-WHITE |
Monotaro ID |
6716815 |
Color |
White |
Type |
Insulated crimp terminal |
Terminal Shape |
Rod shape |
Width (mm) |
1.3 |
Overall Length (mm) |
12 |

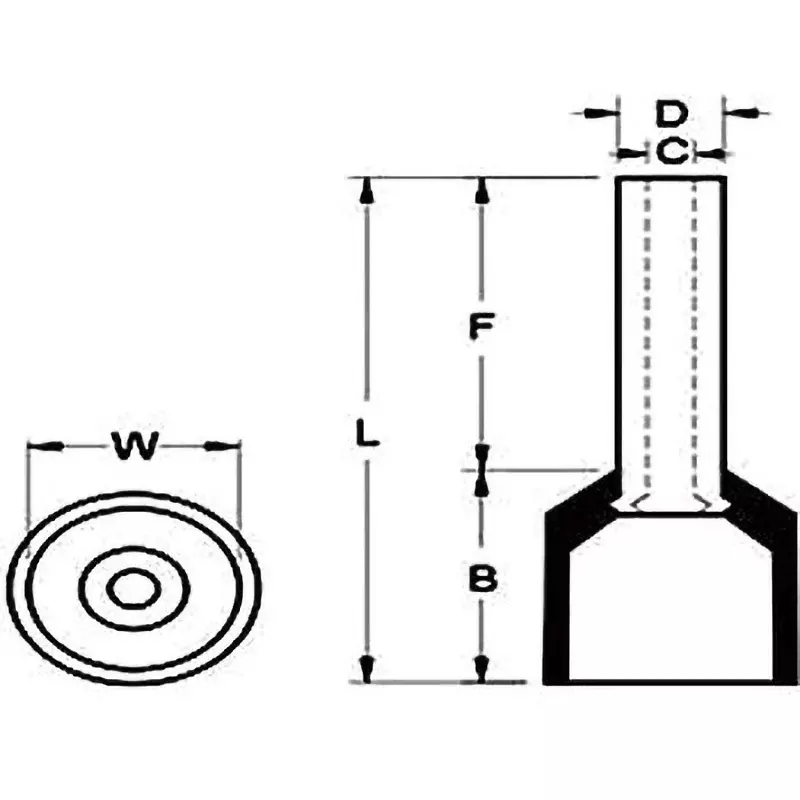

Dimensions B (mm) |
6 |
Dimensions C (mm) |
1 |
Country of Origin |
TAIWAN |
Import Country |
Direct Import from Japan |
Dimensions D (mm) |
1.3 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Pack of |
Pack of 100 Pcs |
Dimension L (mm) |
12 |
Insulator Material |
Nylon |
Dimension W |
2.6 mm |
Wire Crimping Range (AWG#) |
20 |
Terminal Material |
Copper |
Wire Range (Stranded) (mm2) |
0.5 |
Dimensions F (mm) |
6 |
