| Type of Product | Crimp Terminal Bar Type With Insulation Coating |
| Model No | PTHY1-12 |
| Monotaro ID | 6686356 |

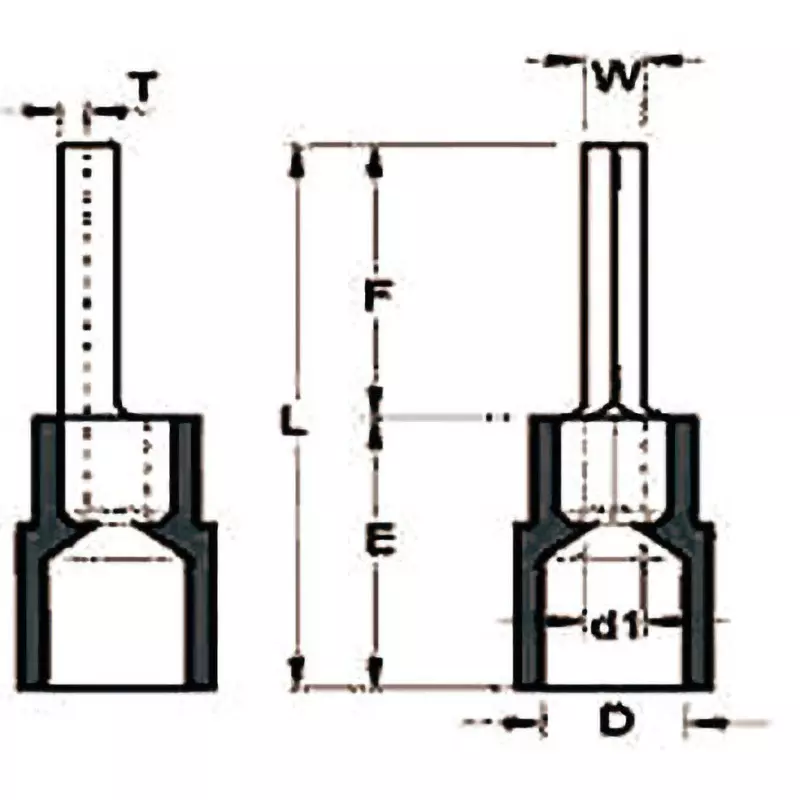

| Dimension D (Φmm) | 4 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Crimp Terminal Bar Type With Insulation Coating |
Model No |
PTHY1-12 |
Monotaro ID |
6686356 |
Dimension D (Φmm) |
4 |
Type |
Insulated crimp terminal |
Rated Voltage (V) |
600 |
Dimensions E (mm) |
11 |
Dimension d1 (Φmm) |
1.7 |
Terminal Shape |
Rod shape |
Width (mm) |
1.9 |
Overall Length (mm) |
22.8 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Dimensions D (mm) |
4 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Pack of |
Pack of 100 Pcs |
Features |
Flame retardant |
Dimension L (mm) |
22.8 |
Wire Crimping Range (AWG#) |
22 to 16 |
Terminal Material |
Copper |
Wire Range (Stranded) (mm2) |
0.5 to 1.5 |
Dimensions F (mm) |
12 |
Dimension T |
0.75 mm |
Insulator Color |
Red |
Sleeve Material |
Vinyl chloride |
Flame Retardance |
UL94V0 |
