| Type of Product | Pin Terminal With Insulating Sleeve |
| Model No | E1508-BLACK |
| Monotaro ID | 6716842 |
| Color | Black |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Pin Terminal With Insulating Sleeve |
Model No |
E1508-BLACK |
Monotaro ID |
6716842 |
Color |
Black |
Type |
Insulated crimp terminal |
Terminal Shape |
Rod shape |

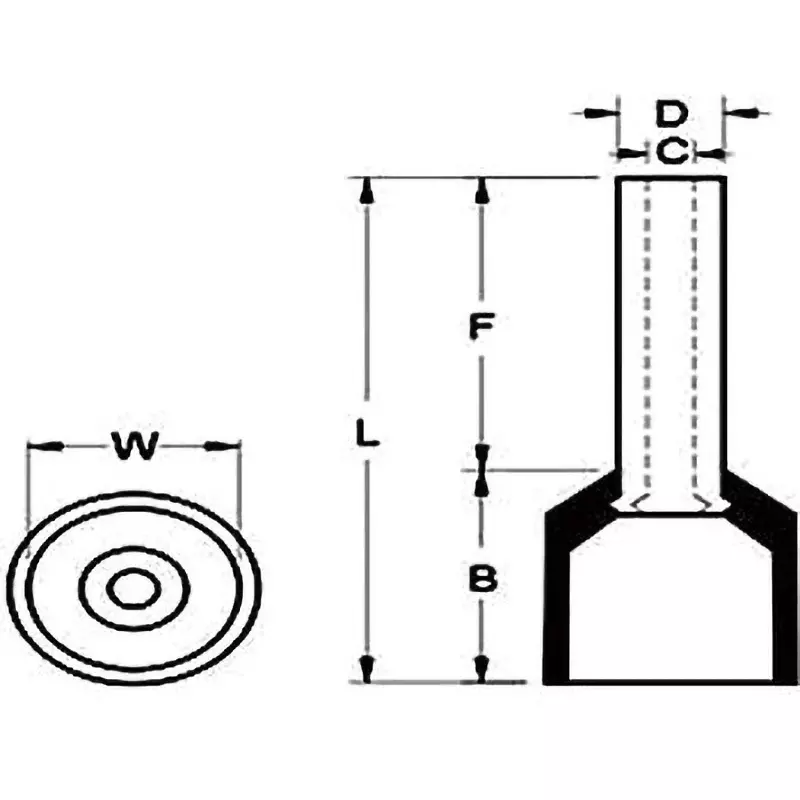

Width (mm) |
2 |
Overall Length (mm) |
14.3 |
Dimensions B (mm) |
6.3 |
Dimensions C (mm) |
1.7 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Dimensions D (mm) |
2 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Pack of |
Pack of 100 Pcs |
Dimension L (mm) |
14.3 |
Insulator Material |
Nylon |
Dimension W |
3.5 mm |
Wire Crimping Range (AWG#) |
16 |
Terminal Material |
Copper |
Wire Range (Stranded) (mm2) |
1.5 |
Dimensions F (mm) |
8 |
