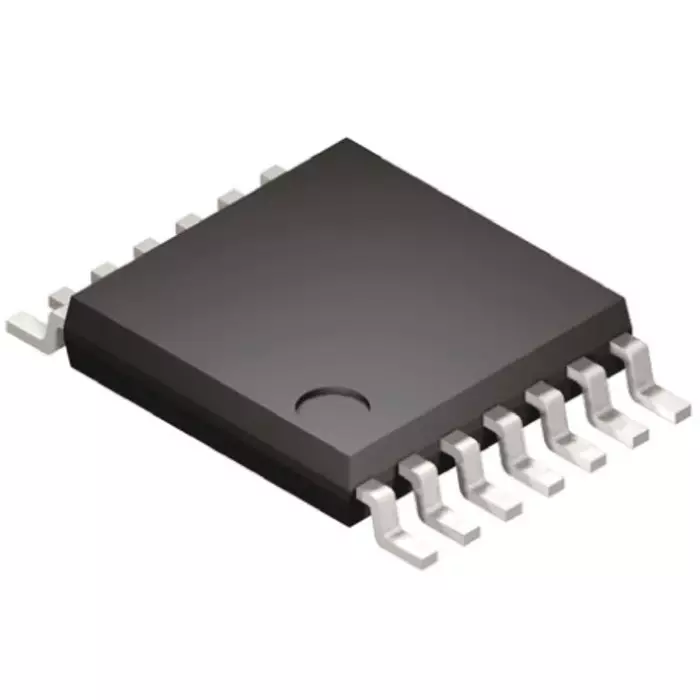

| Type of Product | Quad 2-Input NAND Schmitt Trigger Logic Gate |
| Maximum Operating Temperature | +125 °C |
| Input Type | Schmitt Trigger |
| Country of Origin | Thailand |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Quad 2-Input NAND Schmitt Trigger Logic Gate |
Maximum Operating Temperature |
+125 °C |
Input Type |
Schmitt Trigger |
Country of Origin |
Thailand |
Length |
5.1mm |
Width |
4.5mm |
Height |
0.95mm |
Name of Manufacturer/Packer/Importer |
Nexperia |
Dimension |
5.1 x 4.5 x 0.95mm |
Pack of |
Each of 1 Piece |
Package Type |
TSSOP |
Mounting Type |
Surface Mount |
Pin Count |
14 |
Minimum Operating Temperature |
-40 °C |
Maximum Operating Supply Voltage |
3.6 V |
Minimum Operating Supply Voltage |
1.2 V |
Manufacturer Model Number |
74LVC132APW,118 |
Propagation Delay Test Condition |
50pF |
Logic Family |
LVC |
Maximum Low Level Output Current |
24mA |
Maximum High Level Output Current |
-24mA |
Schmitt Trigger Input |
Yes |
Logic Function |
NAND |
