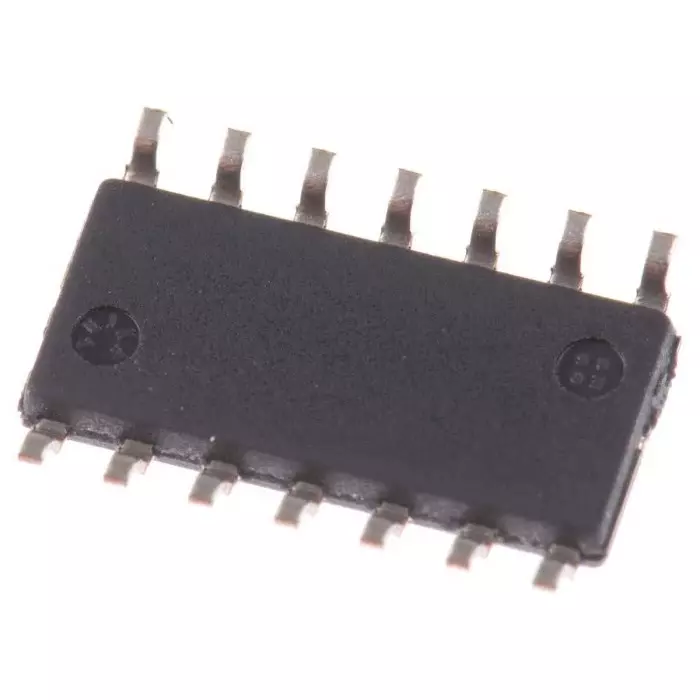

| Type of Product | Quad 2-Input NAND Logic Gate |
| Maximum Operating Temperature | +85 °C |
| Country of Origin | US |
| Length | 8.75mm |
Type of Product |
Quad 2-Input NAND Logic Gate |
Maximum Operating Temperature |
+85 °C |
Country of Origin |
US |
Length |
8.75mm |
Width |
4mm |
Height |
1.45mm |
Name of Manufacturer/Packer/Importer |
Nexperia |
Dimension |
8.75 x 4 x 1.45mm |
Pack of |
Each of 1 Piece |
Package Type |
SOIC |
Mounting Type |
Surface Mount |
Pin Count |
14 |
Minimum Operating Temperature |
-40 °C |
Maximum Operating Supply Voltage |
15 V |
Minimum Operating Supply Voltage |
3 V |
Manufacturer Model Number |
HEF4011BT,652 |
Maximum Propagation Delay Time @ Maximum CL |
110 ns @ 5 V, 35 ns @ 15 V, 45 ns @ 10 V |
Propagation Delay Test Condition |
50pF |
Logic Family |
4000 |
Maximum Low Level Output Current |
3.6mA |
Maximum High Level Output Current |
-3.6mA |
Schmitt Trigger Input |
No |

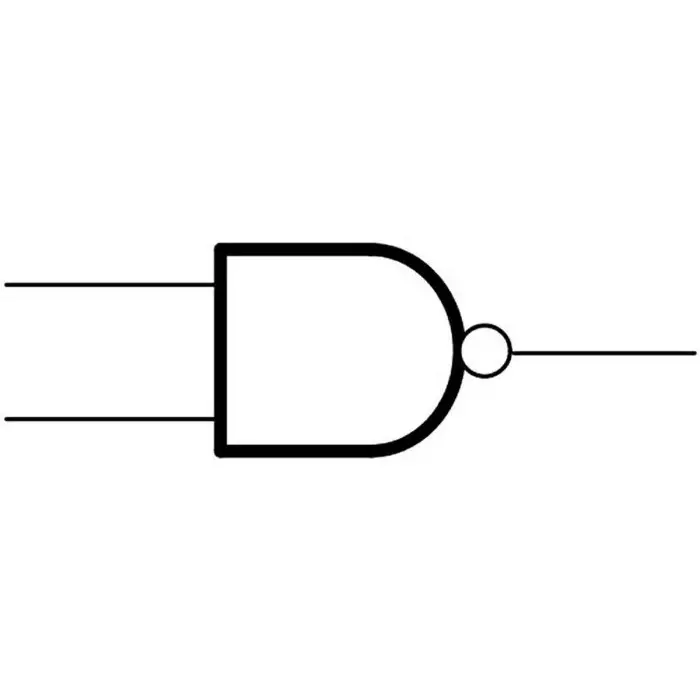

Logic Function |
NAND |
