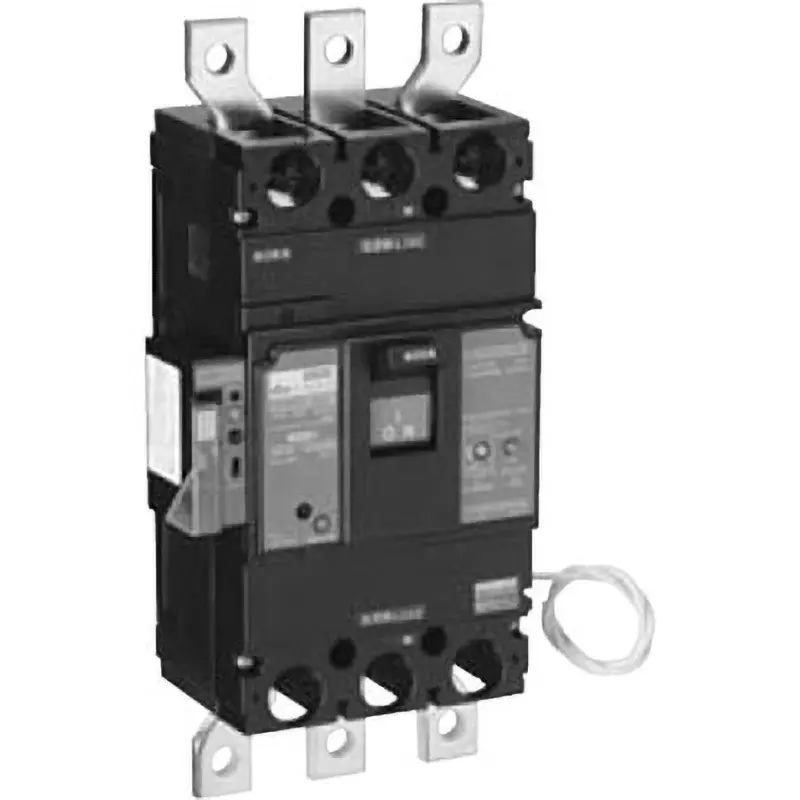

| Type of Product | Circuit Breaker |
| Model No | NE408NA-GT3P400A |
| Monotaro ID | 45168986 |
| Rated Sensitivity Current (mA) | (High-speed type) 30/100/500 switch |
Type of Product |
Circuit Breaker |
Model No |
NE408NA-GT3P400A |
Monotaro ID |
45168986 |
Rated Sensitivity Current (mA) |
(High-speed type) 30/100/500 switch |
Mass (Kg) |
5.7 |
Rated Voltage (V) |
AC100 / AC200 (AA) |
Rated Current (A) |
400 |
Dimensions A (mm) |
165 |
Applicable crimp terminal |
R60-12 to R325-12S/325-12 |
Dimensions E (mm) |
343 |
Dimensions B (mm) |
257 |
Dimensions C (mm) |
103 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Terminal cover, mounting screw, wood screw, sealing screw, terminal screw, terminal cover set screw |
Dimensions D (mm) |
130.5 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
No. of Poles / Elements |
3P2E |
Reverse Connection |
Impossible |
Frame (AF) |
400 |
Rated Breaking Capacity (kA) |
50 |
Terminal Structure |
Bar terminal M12 |
JIS Standard |
JIS C 8201-2-1 Ann2 |
Overcurrent Tripper Type |
Thermal-electromagnetic |
High-Speed Operation Time (sec) |
Within 0.1 |
Earth Leakage Indication |
External alarm signal output (terminal block), LED display |
