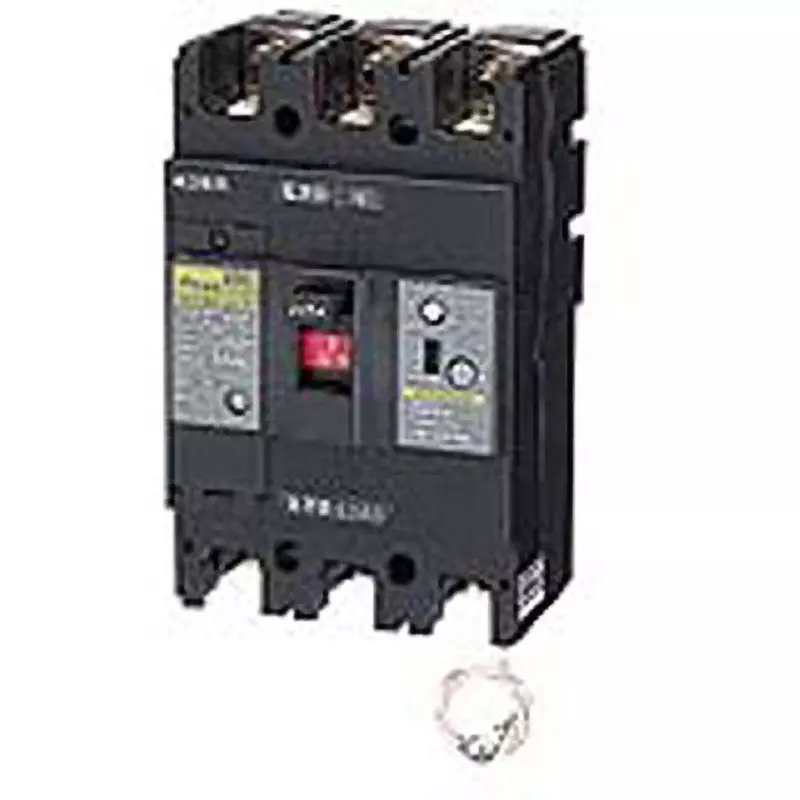

| Type of Product | Circuit Breaker |
| Model No | NE228NA3P175A |
| Monotaro ID | 45168715 |
| Rated Voltage (V) | AC100 / AC200 (AA) |
Type of Product |
Circuit Breaker |
Model No |
NE228NA3P175A |
Monotaro ID |
45168715 |
Rated Voltage (V) |
AC100 / AC200 (AA) |
Rated Current (A) |
175 |
Dimensions A (mm) |
105 |
Applicable crimp terminal |
R22-8 to CB150-8(8S) |
Dimensions B (mm) |
165 |
Dimensions C (mm) |
68 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Terminal cover, mounting screw, wood screw, sealing plate, terminal cover set screw, crimp terminal |
Dimensions D (mm) |
90 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
No. of Poles / Elements |
3P2E |
Reverse Connection |
Impossible |
Frame (AF) |
225 |
Rated Breaking Capacity (kA) |
35 |
Terminal Structure |
M8 for crimp terminal |
JIS Standard |
JIS C 8201-2-1 Ann2 |
Overcurrent Tripper Type |
Thermal-electromagnetic |
