Ships within 25 days
View
View
View
View

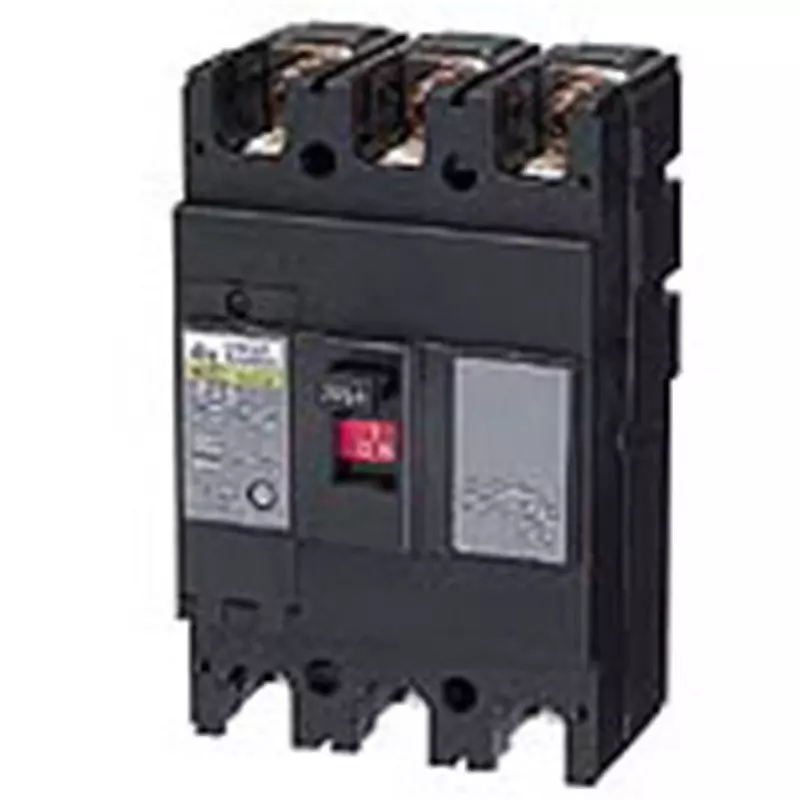

| Type of Product | NBE Circuit Breaker Economic Type |
| Model No | NE53AF3P30A |
| Monotaro ID | 60843325 |
| Rated Current (A) | 30 |
Type of Product |
NBE Circuit Breaker Economic Type |
Model No |
NE53AF3P30A |
Monotaro ID |
60843325 |
Rated Current (A) |
30 |
Applicable crimp terminal |
R2-5 to CB22-5S |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Connection Type |
Embedded type |
Included Components |
Terminal cover, mounting screw, wood screw, sealing plate, terminal cover set screw |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
Rated Insulation Voltage (V) |
AC500 |
No. of Poles / Elements |
3P3E |
Reverse Connection |
Possible |
Frame (AF) |
50 |
Rated Breaking Capacity (kA) |
5(AC415), 10(AC200) |
Terminal Structure |
Wire clamp terminal M5 |
JIS Standard |
JIS C 8201-2-1 Ann2 |
Overcurrent Tripper Type |
Fully electromagnetic |
Applicable motor (kW) |
7.5 |
