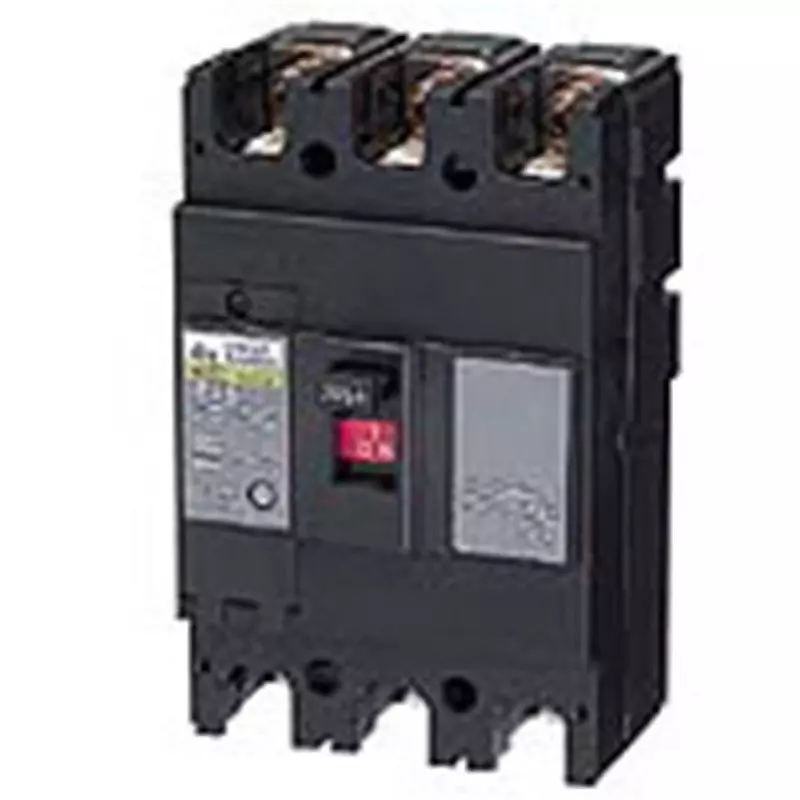

| Type of Product | Circuit Breaker |
| Model No | NE2222P200A |
| Monotaro ID | 45168076 |
| Rated Current (A) | 200 |
Type of Product |
Circuit Breaker |
Model No |
NE2222P200A |
Monotaro ID |
45168076 |
Rated Current (A) |
200 |
Dimensions A (mm) |
105 |
Applicable crimp terminal |
R22-8 to CB150-8(8S) |
Dimensions B (mm) |
165 |
Dimensions C (mm) |
68 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Connection Type |
Surface type |
Included Components |
Terminal cover, mounting screw, wood screw, sealing plate, terminal cover set screw, crimp terminal |
Dimensions D (mm) |
90 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
Rated Insulation Voltage (V) |
AC600/DC250 |
No. of Poles / Elements |
2P2E |
Reverse Connection |
Possible |
Frame (AF) |
225 |
Rated Breaking Capacity (kA) |
18(AC415), 35(AC200), 10(DC250) |
Terminal Structure |
M8 for crimp terminal |
JIS Standard |
JIS C 8201-2-1 Ann2 |
Overcurrent Tripper Type |
Thermal-electromagnetic |
