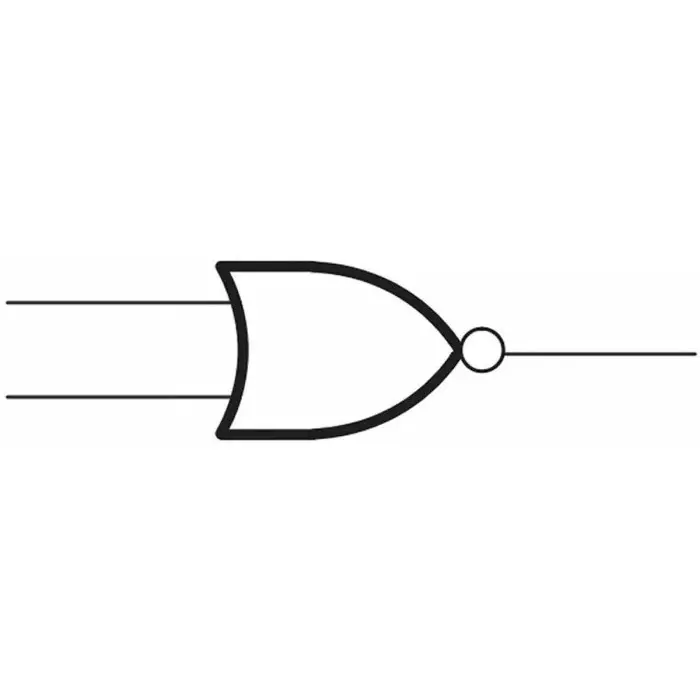

NXP Quad 2-Input NOR Logic Gate, 14-Pin SOIC, HEF4001BT,652

Ships within 15 days

NXP Quad 2-Input NOR Logic Gate, 14-Pin SOIC, HEF4001BT,652

NXP Quad 2-Input NOR Logic Gate, 14-Pin SOIC, HEF4001BT,652

Visit the NXP Store

Available offers

Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features

Type of Product	Quad 2-Input NOR Logic Gate
Maximum Operating Temperature	+125 °C
Country of Origin	US
Length	8.75mm

More NXP Electrical Components products More Electrical Components products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Type of Product	Quad 2-Input NOR Logic Gate
Maximum Operating Temperature	+125 °C
Country of Origin	US
Length	8.75mm
Width	4mm
Height	1.45mm
Name of Manufacturer/Packer/Importer	NXP
Dimension	8.75 x 4 x 1.45mm
Pack of	Each of 1 Piece
Package Type	SOIC
Mounting Type	Surface Mount
Pin Count	14
Minimum Operating Temperature	-40 °C
Maximum Operating Supply Voltage	15 V
Minimum Operating Supply Voltage	3 V
No. of Elements	4
Manufacturer Model Number	HEF4001BT,652
Maximum Propagation Delay Time @ Maximum CL	120 ns @ 5 V, 40 ns @ 15 V, 50 ns @ 10 V
Propagation Delay Test Condition	50pF
Logic Family	4000
Maximum Low Level Output Current	4.2mA
Maximum High Level Output Current	-4.2mA
Schmitt Trigger Input	No
Logic Function	NOR
Number of Inputs Per Gate	2
