Ships within 19 days
Model No
Input/Output
View
View
View
View
| Type of Product | I/O Terminal |

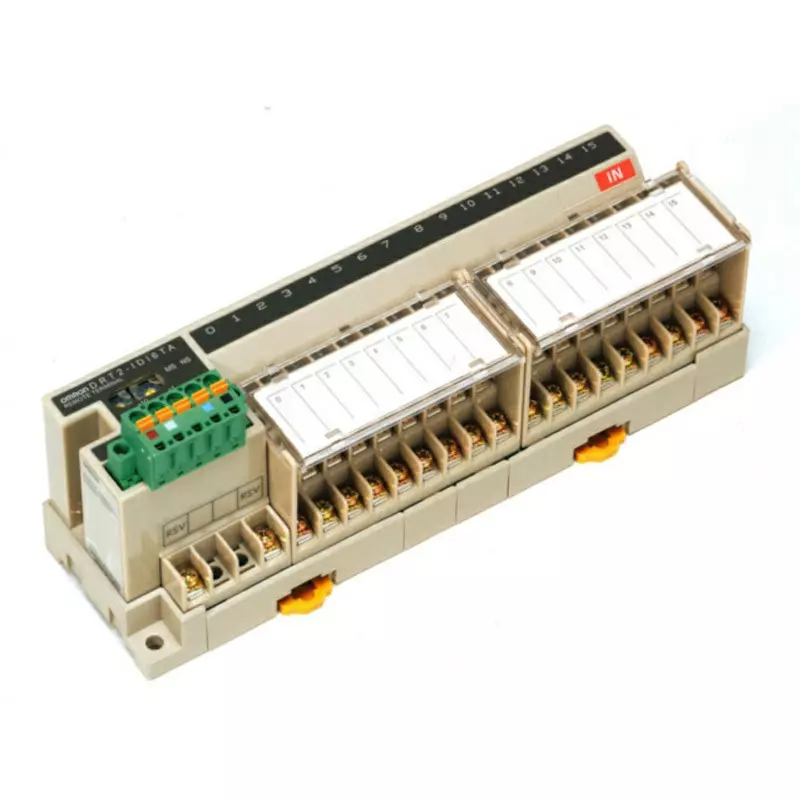

| Model No | DRT2-ID16TA-1 |
| Monotaro ID | 39042787 |
| Type | 3-Tier Terminal Block Transistor Type |
Type of Product |
I/O Terminal |
Model No |
DRT2-ID16TA-1 |
Monotaro ID |
39042787 |
Type |
3-Tier Terminal Block Transistor Type |
Mass (g) |
300 or less |
Function |
Smart slave / operation time monitor, contact operation frequency monitor, unit energization time monitor, ON integrated time monitor, unit co mment, connected device co mment, network power supply voltage monitor, I / O power status monitor, co mmunication error history monitor, input filter, power supply Prevention of malfunction due to inrush current at power-on, terminal block attachment / detachment structure, automatic co mmunication speed recognition, unit power supply wiring unnecessary, last maintenance date |
Withstand Voltage |
500 VAC (between isolated circuits) |
Power Supply Voltage |
DC 11 to DC25 (Supplied From Co mmunication Connector) C |
Rated Voltage |
(Internal Circuit Power Supply) Supplied From Co Mmunication Connector (I/O Power Supply) Dc24V |
Terminal Type |
(I / O) M3 screw terminal |
Storage Temperature |
-20 to +65 °C |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Input/Output |
16 inputs |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Output Current (A) |
- |
Input Voltage (V) |
ON voltage/DC15 or more (between each input terminal and G) OFF voltage/DC5 or less (between each input terminal and G) |
Category |
Electrical Components |
