Ships within 19 days
Model No
View
View
View
View

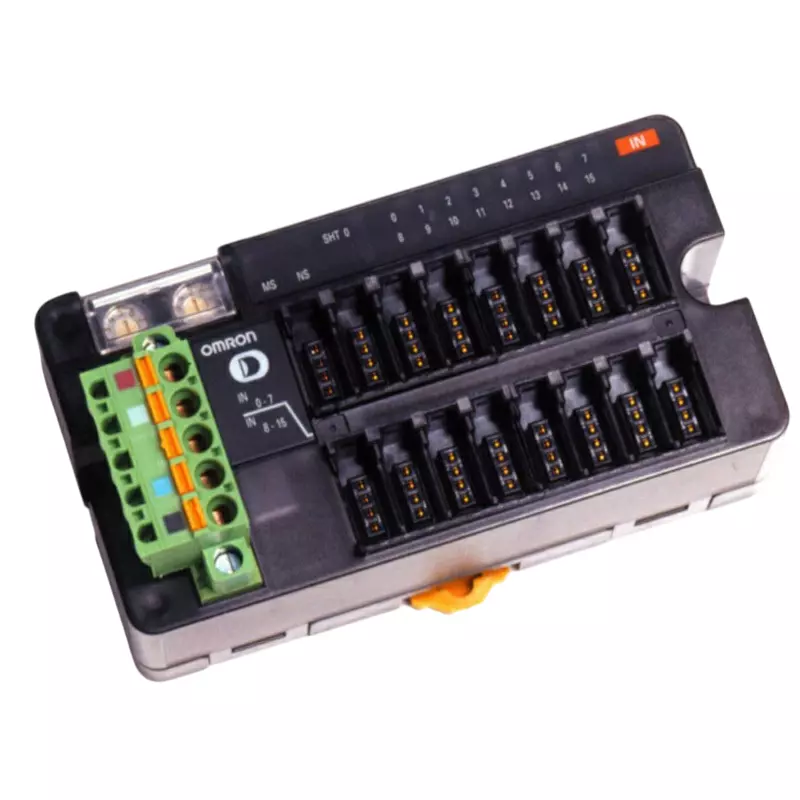

| Type of Product | Connector Terminal |
| Model No | DRT2-ID16S |
| Monotaro ID | 39042753 |
| Type | Input 16-Point Type |
Type of Product |
Connector Terminal |
Model No |
DRT2-ID16S |
Monotaro ID |
39042753 |
Type |
Input 16-Point Type |
Mass (g) |
90 or Less |
Function |
Smart Slave Function / On Integration Time Monitor, Network Power Supply Voltage Monitor, Malfunction Prevention Due To Inrush Current When Power Is Turned On, Automatic Communication Speed Recognition, Last Maintenance Date, Contact Operation Frequency Monitor, Unit Comment, Communication Error History Monitor, Power Supply Short Circuit Detection, No Unit Power Supply Wiring Required, Unit Energization Time Monitor, Connected Device Comment, Input Filter, Load Short-Circuit Detection Function, Input Device Power Supply Wiring Unnecessary |
Withstand Voltage |
500 VAC (Between Isolated Circuits) |
Current Consumption (mA) |
Communication Power Supply / 230 or Less |
Rated Voltage |
(Internal Circuit Power Supply) Supplied from Communication Connector (I/O Power) Supplied from Communication Connector |
Storage Temperature |
-20 to +65 °C |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Input Voltage (V) |
On Voltage: DC 9 Or More (Between Each Input Terminal And V) Off Voltage: DC 5 Or Less (Between Each Input Terminal And V) |
Power Supply Voltage (V) |
Communication Power Supply/DC 11 To 25 Unit Power Supply/Not Required (Supplied From Communication Connector) I/O Power Supply/DC 20.4 To 26.4 (DC 24V -15 To +10%) |
