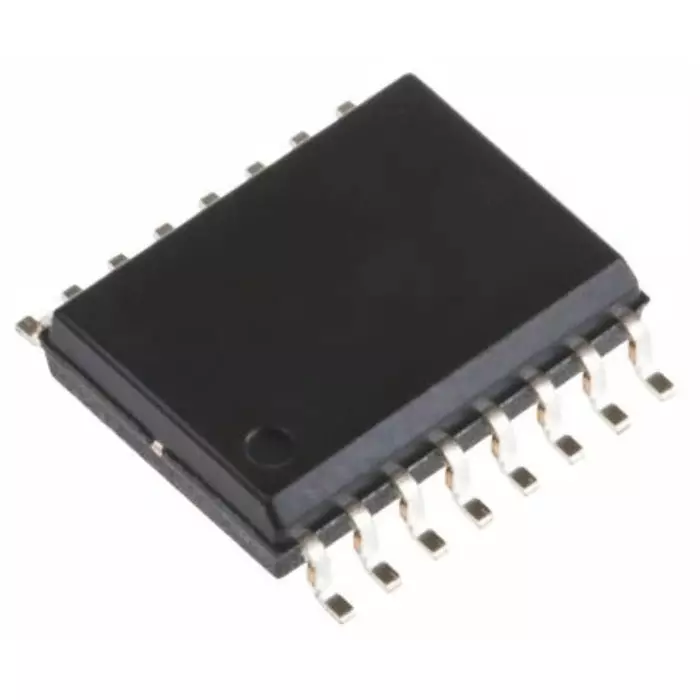

| Type of Product | 4-Input Multiplexer Logic Gate, 16-Pin SOIC |
| Maximum Operating Temperature | +85 °C |
| Input Type | TTL |
| Country of Origin | US |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
4-Input Multiplexer Logic Gate, 16-Pin SOIC |
Maximum Operating Temperature |
+85 °C |
Input Type |
TTL |
Country of Origin |
US |
Length |
10mm |
Width |
4mm |
Height |
1.5mm |
Name of Manufacturer/Packer/Importer |
onsemi |
Dimension |
10 x 4 x 1.5mm |
Pack of |
Each of 1 Piece |
Package Type |
SOIC |
Mounting Type |
Surface Mount |
Pin Count |
16 |
Minimum Operating Temperature |
-40 °C |
Maximum Operating Supply Voltage |
5.5 V |
Minimum Operating Supply Voltage |
4.5 V |
Manufacturer Model Number |
MC74ACT153DG |
Maximum Propagation Delay Time @ Maximum CL |
17.5 ns @ 50 pF |
Propagation Delay Test Condition |
50pF |
Logic Family |
ACT |
Maximum Low Level Output Current |
24mA |
Maximum High Level Output Current |
-24mA |
Logic Function |
Multiplexer |
Number of Inputs Per Gate |
4 |
