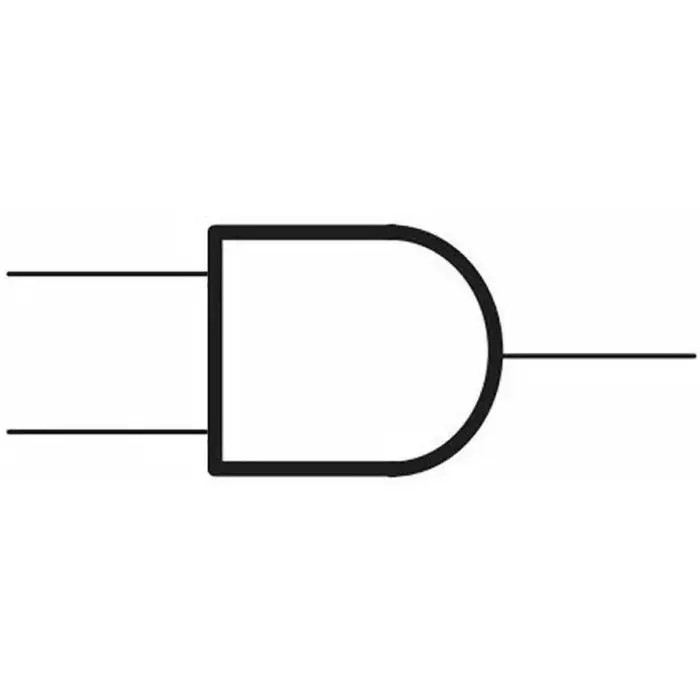

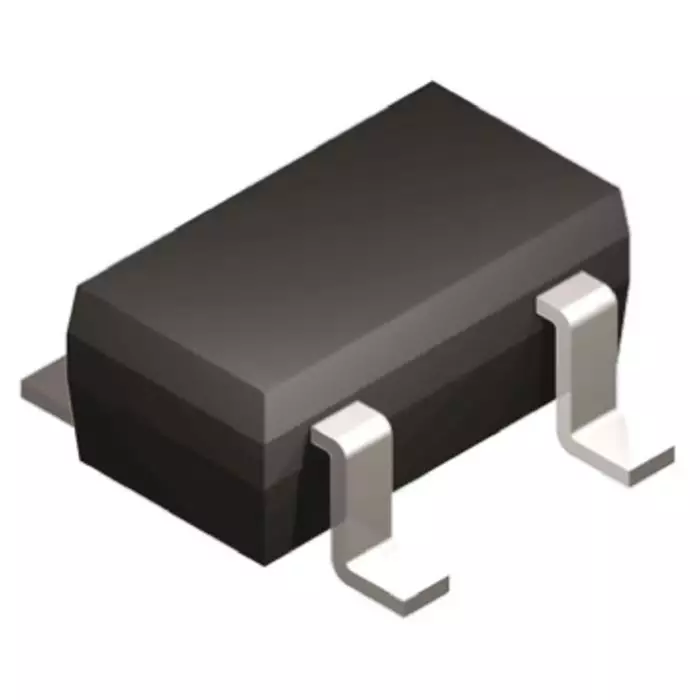

| Type of Product | 2-Input AND Logic Gate, 5-Pin TSOP |
| Maximum Operating Temperature | +125 °C |
| Input Type | CMOS |
| Country of Origin | Malaysia |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
2-Input AND Logic Gate, 5-Pin TSOP |
Maximum Operating Temperature |
+125 °C |
Input Type |
CMOS |
Country of Origin |
Malaysia |
Length |
3mm |
Width |
1.5mm |
Height |
1mm |
Name of Manufacturer/Packer/Importer |
onsemi |
Dimension |
3 x 1.5 x 1mm |
Pack of |
Pack of 3000 |
Package Type |
TSOP |
Mounting Type |
Surface Mount |
Pin Count |
5 |
Minimum Operating Temperature |
-55 °C |
Output Type |
Buffer, Single Ended |
Maximum Operating Supply Voltage |
5.5 V |
Minimum Operating Supply Voltage |
2 V |
No. of Elements |
1 |
Manufacturer Model Number |
MC74VHC1G08DTT1G |
Maximum Propagation Delay Time @ Maximum CL |
16.5 ns @ 50 pF |
Propagation Delay Test Condition |
50pF |
Logic Family |
VHC |
Maximum Low Level Output Current |
8mA |
Maximum High Level Output Current |
-8mA |
Schmitt Trigger Input |
No |
Logic Function |
AND |
Number of Inputs Per Gate |
2 |
