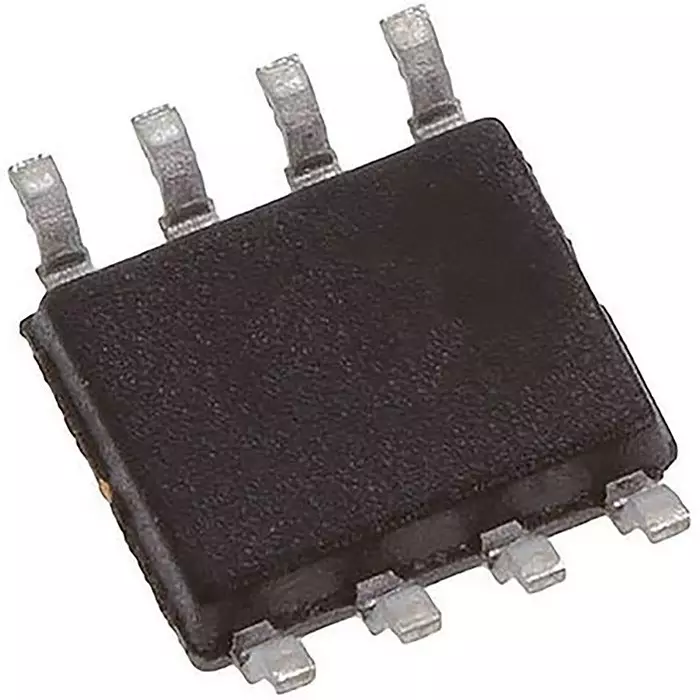

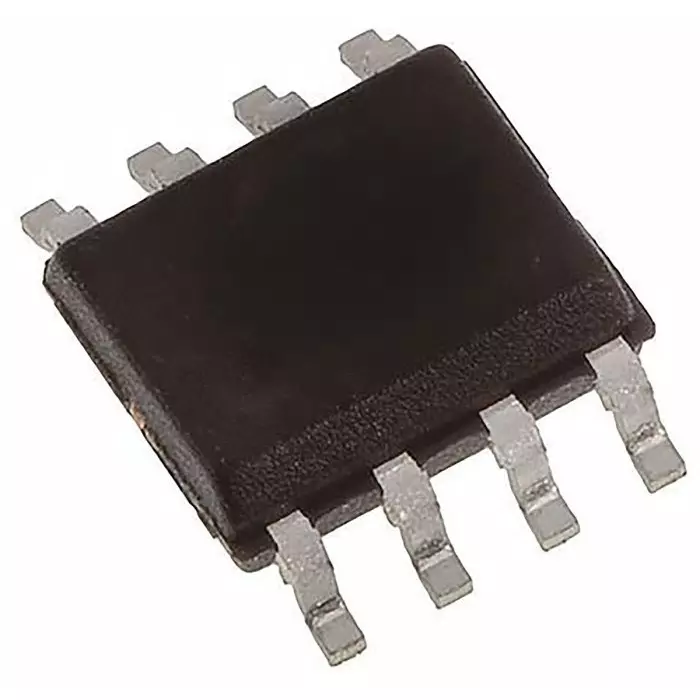

| Type of Product | 2-Input AND/NAND Logic Gate, 8-Pin SOIC |
| Maximum Operating Temperature | +85 °C |
| Input Type | ECL |
| Country of Origin | Philippines |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
2-Input AND/NAND Logic Gate, 8-Pin SOIC |
Maximum Operating Temperature |
+85 °C |
Input Type |
ECL |
Country of Origin |
Philippines |
Length |
5mm |
Width |
4mm |
Height |
1.5mm |
Name of Manufacturer/Packer/Importer |
onsemi |
Dimension |
5 x 4 x 1.5mm |
Pack of |
Each of 1 Piece |
Package Type |
SOIC |
Mounting Type |
Surface Mount |
Pin Count |
8 |
Minimum Operating Temperature |
-40 °C |
Output Type |
ECL |
Maximum Operating Supply Voltage |
5.7 V |
Minimum Operating Supply Voltage |
-4.2 V |
No. of Elements |
1 |
Manufacturer Model Number |
MC10EL04DG |
Maximum Propagation Delay Time @ Maximum CL |
395ps |
Logic Family |
ECL |
Maximum Low Level Output Current |
0.3±5A |
Schmitt Trigger Input |
No |
Logic Function |
AND/NAND |
Number of Inputs Per Gate |
2 |
