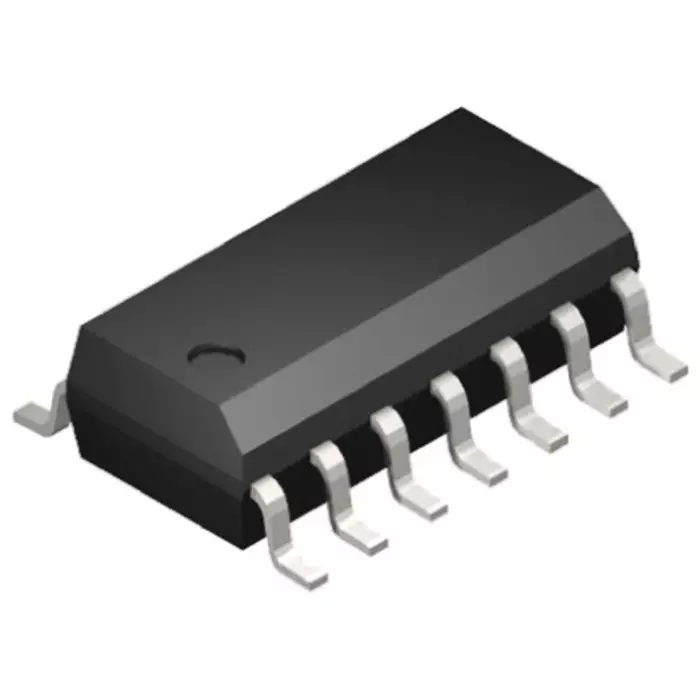

| Type of Product | Quad 2-Input XOR Logic Gate, 14-Pin SOIC |
| Maximum Operating Temperature | +125 °C |
| Country of Origin | US |
| Length | 8.75mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Quad 2-Input XOR Logic Gate, 14-Pin SOIC |
Maximum Operating Temperature |
+125 °C |
Country of Origin |
US |
Length |
8.75mm |
Width |
4mm |
Height |
1.5mm |
Name of Manufacturer/Packer/Importer |
onsemi |
Dimension |
8.75 x 4 x 1.5mm |
Pack of |
Each of 1 Piece |
Package Type |
SOIC |
Mounting Type |
Surface Mount |
Pin Count |
14 |
Minimum Operating Temperature |
-55 °C |
Output Type |
TTL |
Maximum Operating Supply Voltage |
18 V |
Minimum Operating Supply Voltage |
3 V |
No. of Elements |
4 |
Manufacturer Model Number |
MC14070BDG |
Maximum Propagation Delay Time @ Maximum CL |
150ns |
Propagation Delay Test Condition |
50pF |
Logic Family |
4000 |
Maximum Low Level Output Current |
10mA |
Maximum High Level Output Current |
-10mA |
Schmitt Trigger Input |
No |
Logic Function |
XOR |
Number of Inputs Per Gate |
2 |
