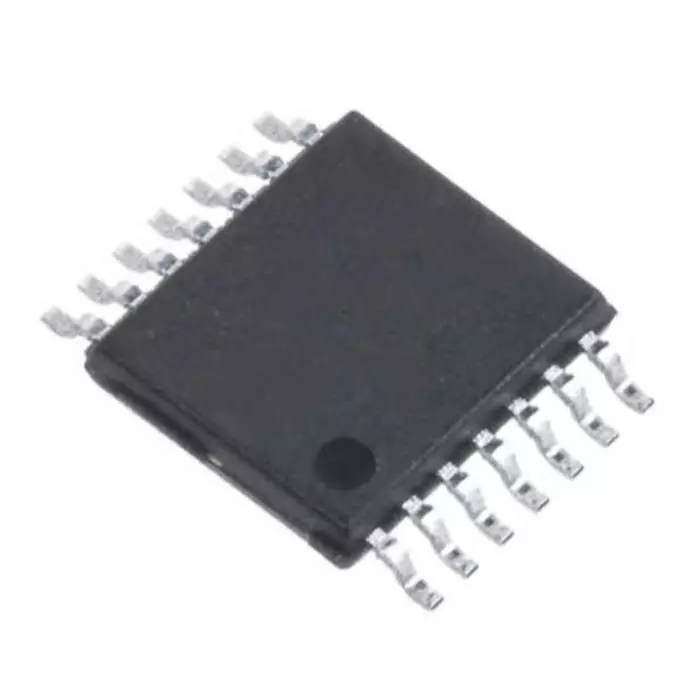

| Type of Product | Quad 2-Input OR Logic Gate, 14-Pin TSSOP |
| Maximum Operating Temperature | +85 °C |
| Input Type | TTL |
| Country of Origin | US |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Quad 2-Input OR Logic Gate, 14-Pin TSSOP |
Maximum Operating Temperature |
+85 °C |
Input Type |
TTL |
Country of Origin |
US |
Length |
5.1mm |
Width |
4.5mm |
Height |
1.05mm |
Name of Manufacturer/Packer/Importer |
onsemi |
Dimension |
5.1 x 4.5 x 1.05mm |
Pack of |
Pack of 2500 |
Package Type |
TSSOP |
Mounting Type |
Surface Mount |
Pin Count |
14 |
Minimum Operating Temperature |
-40 °C |
Maximum Operating Supply Voltage |
5.5 V |
Minimum Operating Supply Voltage |
4.5 V |
No. of Elements |
4 |
Manufacturer Model Number |
74ACT32MTCX |
Maximum Propagation Delay Time @ Maximum CL |
10 ns @ 50 pF |
Propagation Delay Test Condition |
50pF |
Logic Family |
ACT |
Maximum Low Level Output Current |
24mA |
Maximum High Level Output Current |
-24mA |
Logic Function |
OR |
Number of Inputs Per Gate |
2 |
