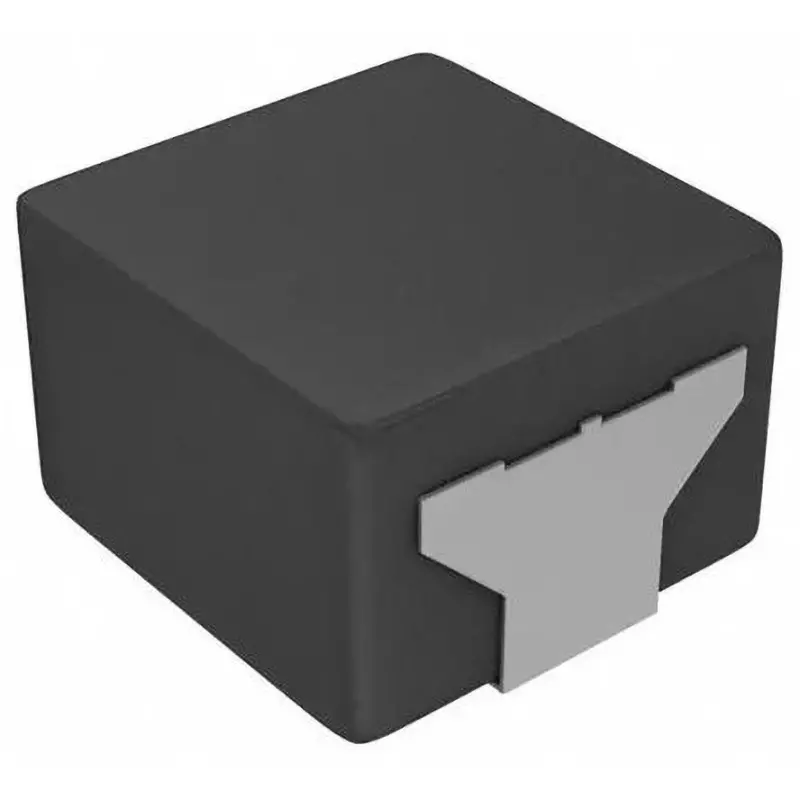

| Type of Product | Automotive Choke Coil Inductor |
| Model No | ETQP3MR68KVN |
| Monotaro ID | 47763145 |
| Length (mm) | 6.4 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Automotive Choke Coil Inductor |
Model No |
ETQP3MR68KVN |
Monotaro ID |
47763145 |
Length (mm) |
6.4 |
Height (mm) |
3 |
Tolerance |
±10% |
inductance (nH) |
680 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Series |
ETQP3M |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Pack of |
10 Pcs |
Core Material |
Metal Composite |
DC Resistance |
5.2 mΩ Max. |
Specifications |
ETQP3M series low profile power choke coil. Panasonic's ETQP3M choke coil is a low profile compact solution. Since it uses a magnetic iron alloy, it has a high bias current, and boasts high efficiency due to low RDC in the winding and low eddy current loss in the core. ETQP3M choke coil is manufactured by metal composite core technology, reliable and heat resistant up to +155℃. Designed for in-vehicle equipment and harsh environments, these power chokes are highly vibration resistant. These power chokes feature low audible (buzz) noise. Features. Excellent inductance stability over wide temperature range High efficiency Excellent heat resistance High bias current Surface mount design Low profile. Product application information. ETQP3M choke coil is AEC-Q200 qualified and suitable for automotive applications I am. We recommend using these choke coils as noise filters for drive circuits that require peak current processing capability and high temperature operation. It is also suitable for DC-DC buck converters and boost converters. |
Maximum Current (A) |
13.2 (Dc) |
Operating Temperature (c) |
155 |
