| Type of Product | Insulation Support Base |
| Model No | SB-25-5 |
| Monotaro ID | 9219551 |
| Color | Black |
Type of Product |
Insulation Support Base |
Model No |
SB-25-5 |
Monotaro ID |
9219551 |
Color |
Black |
Type |
Nuts and bolts |
Material |
Polypropylene |
Mass (g) |
16 |

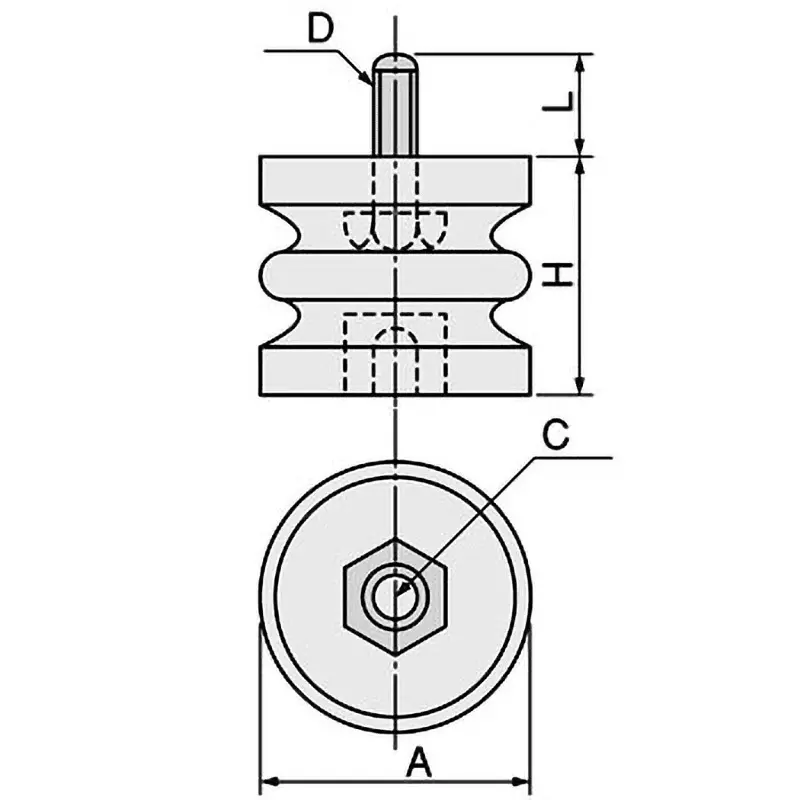

Dimension A (Φmm) |
25 |
Finish Type |
Electrogalvanized trivalent chromate treatment, Bolts and Buts: Electrogalvanized trivalent chromate treatment |
Withstand Voltage |
2.5 kV/1 min |
Length (mm) |
10 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Series |
SB type |
Name of Manufacturer/Packer/Importer |
Shinohara Electric Co., Ltd. |
Pack of |
10 Pcs |
Rated Insulation Voltage (V) |
AC 600/DC750 |
Depth (mm) |
8.5 |
Dimension H (Φmm) |
25 |
Bolt Material |
Made of iron |
Dimension C |
M5 |
Color (resin part) |
Black |
Dimension d |
M5 |
