| Type of Product | Pencil Type Ionizer |
| Model No | ANZ-SC3 |
| Monotaro ID | 49721473 |
| Mass (g) | (Main unit) 95, (Controller) 570 |
Type of Product |
Pencil Type Ionizer |
Model No |
ANZ-SC3 |
Monotaro ID |
49721473 |
Mass (g) |
(Main unit) 95, (Controller) 570 |
Operation Environment |
0-40 ℃ / 65% RH or less (no condensation) |
Input Power |
DC24 (AC adapter included AC100V to 240V compatible) |
Current Consumption (mA) |
400 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Display |
Green: Lights up when discharge is normal, Red: Lights up when discharge is abnormal |
Output Voltage |
About 2500 V AC (high frequency AC power supply) |
Name of Manufacturer/Packer/Importer |
Shishido Static Electricity Co., Ltd. |

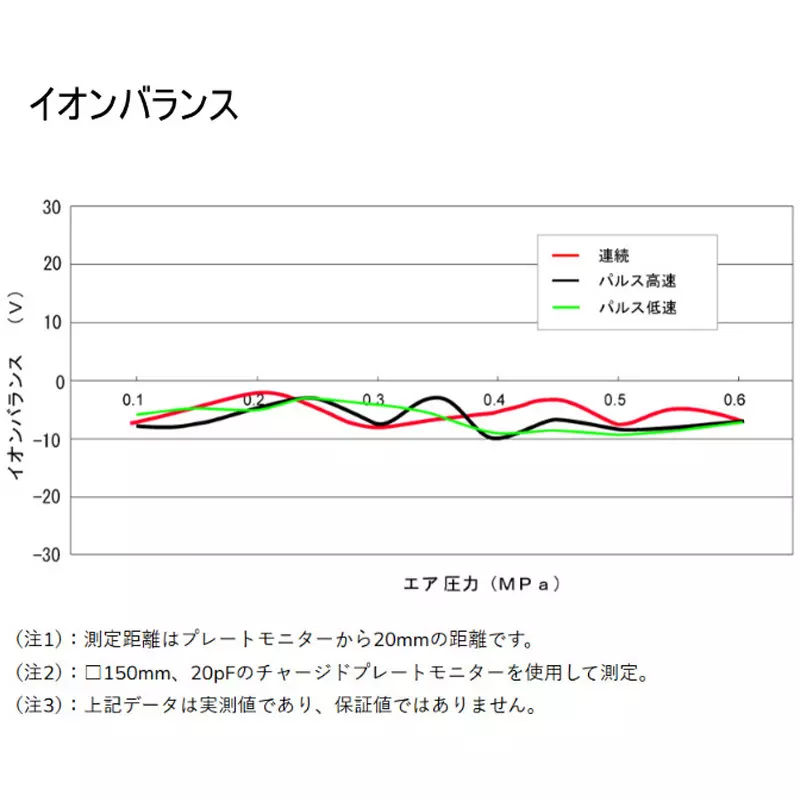

Ion Balance |
± 15V or less |
Suitable Fluid |
Clean air |
Ozone Generating Amount |
0.04 ppm or less (150 mm from the outlet) |
Anomaly Detection Function |
Discharge abnormal contact output (MOSFET relay b contact, DC30V 100mA or less) |
Buzzer Sound |
ON when discharge is abnormal |
Constitution |
Controller, AC adapter, ground wire, holder (4 pieces), contact pin (5 pieces), air tube |
Specifications |
(Air discharge setting) CONT: Continuous, PULSE Hi: Pulse high speed (10Hz), PULSE Lo: Pulse low speed (5Hz) |
Main Unit Dimensions |
(Main unit) Φ18x154L, mm (Controller) 135Wx50Hx75D mm (excluding protrusions) |
Discharge Type |
High frequency AC corona discharge type |
Air Flow Rate |
Up to 190 L/min |
Air Pressure (MPa) |
0.05 to 0.6 |
