| Type of Product | Static electricity removal blower |
| Model No | BF-X2DD-V2 |
| Monotaro ID | 89302114 |
| Mass (g) | 900 (including stand) |
Type of Product |
Static electricity removal blower |
Model No |
BF-X2DD-V2 |
Monotaro ID |
89302114 |
Mass (g) |
900 (including stand) |
Output Signal |
NPN photo relay output, high voltage or higher (ALARM), cleaning check (CC) |

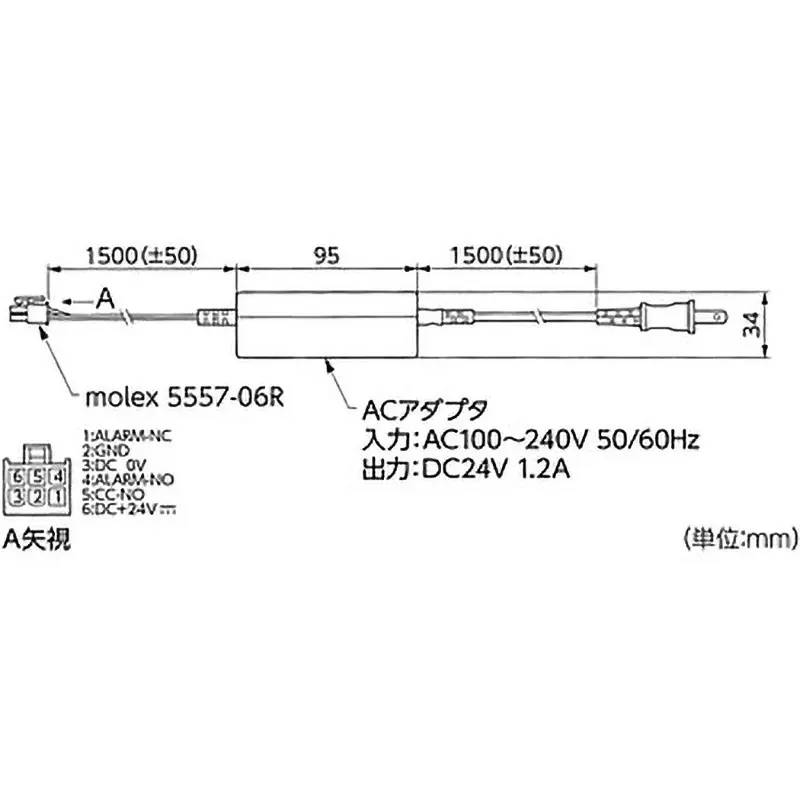

Input Power |
DC 24 (AC adapter included AC100-240 V compatible) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |

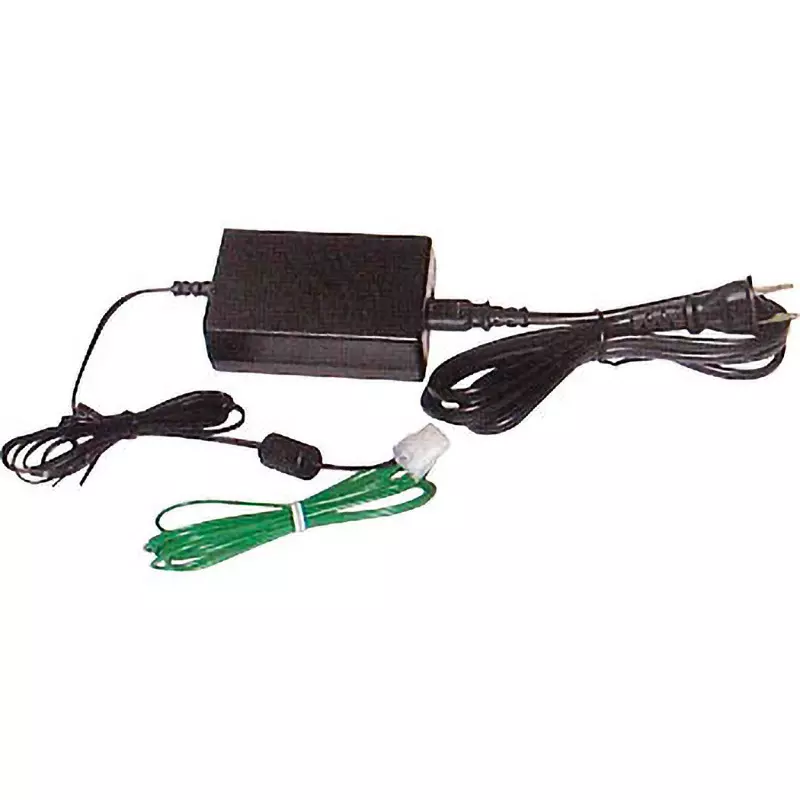

Instruction manual, AC adapter, output signal connection lead wire (3 pcs), cleaning brush |
Name of Manufacturer/Packer/Importer |
Shishido Static Electricity Co., Ltd. |
Trusco Part No. |
485-6317 |
Ion Balance |
± 20V or less (distance 300mm, factory shipping) |
Output Voltage (V) |
DC±7.5K |
Operating Temperature / Humidity Range |
0 to 40°C, 15 to 85% (no condensation) |
Specifications |

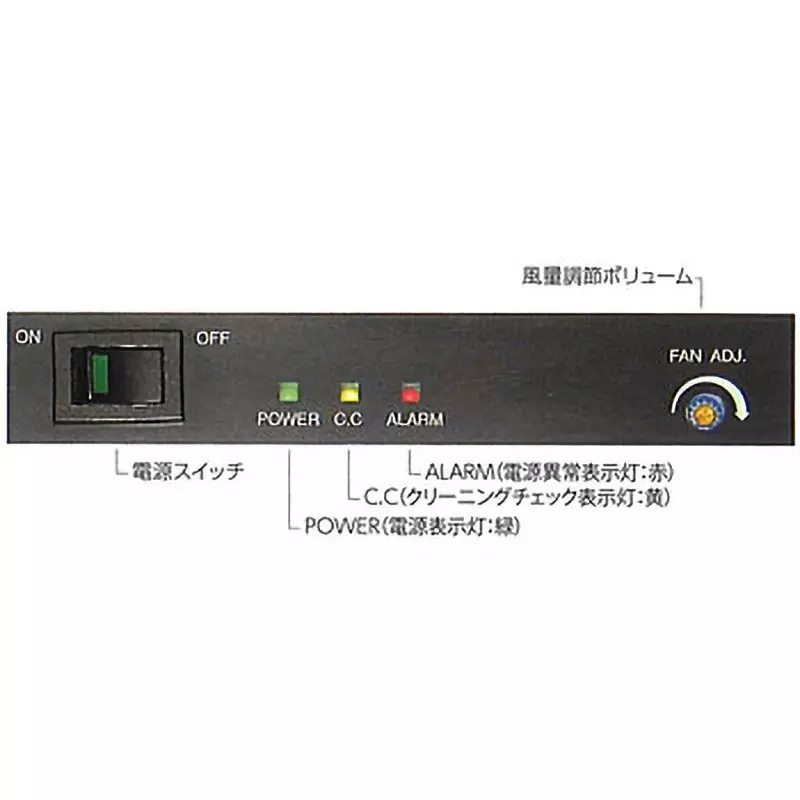

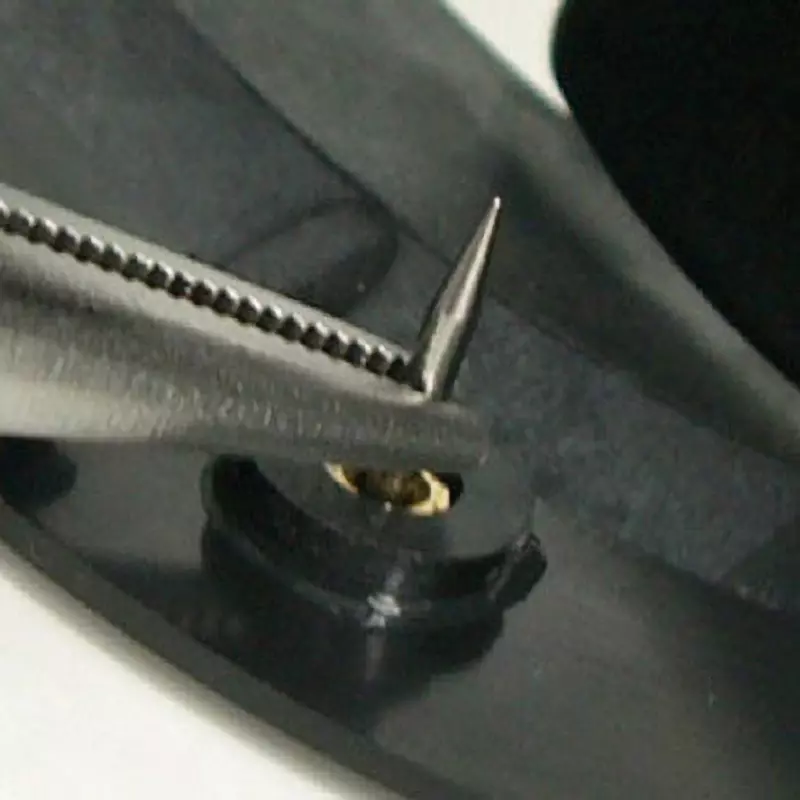

[Display] Green: Power display (POWER), Yellow: Cleaning check (CC), Red: Power failure (ALARM) [Safety louver] Removable type for easy maintenance, safety device automatically stops when removed. [Air volume adjustment] You can adjust the wind speed. [DC corona discharge type] Direct current (DC) corona discharge type ionizer. [HV alarm output] The status of high-voltage transformer output is indicated by LED, and the output signal can be confirmed. [Cleaning check] An alarm is issued when the amount of generated ions decreases due to dirt on the discharge needle, etc. [Tungsten discharge needle] The manufacturer's original tungsten is used for the discharge needle. [Replaceable Discharge Needle] Customers can replace the discharge needle unit and discharge needle by themselves. |
Wind Speed (m/s) |
1.0-2.2 (300mm distance center) |
Ozone Concentration |
0.007ppm or less (150mm center distance) |
Noise Level (dB (A)) (50/60Hz) |
62 / distance 1m |

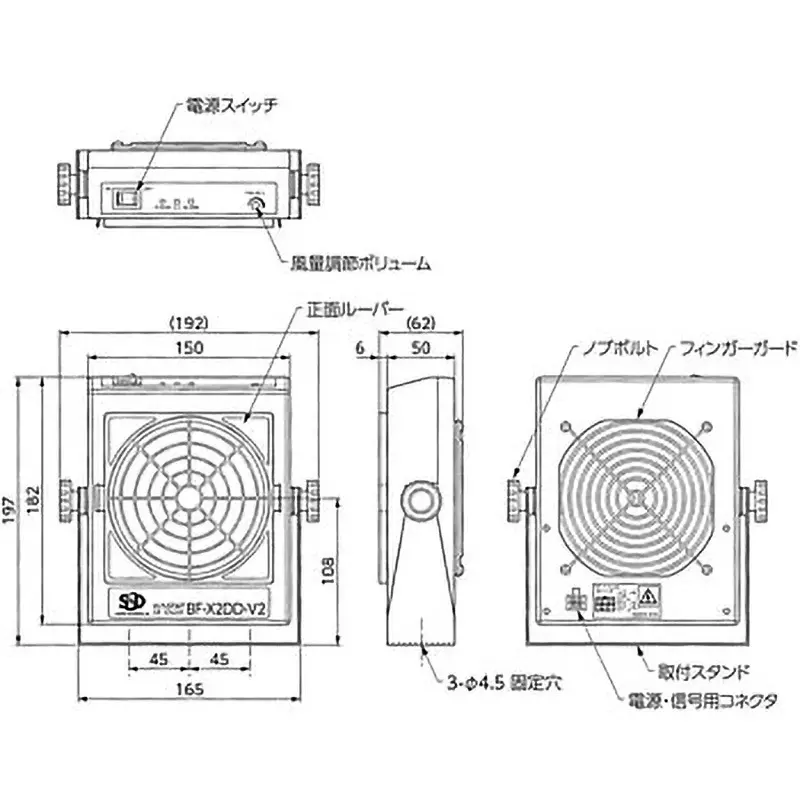

Main Unit Dimensions |
150x62x182 mm (excluding protrusions) |
Discharge Type |
DC method |
Air Volume (m³/min) |
1.7 to 3.6 |
Capacity (VA) |
15 |
