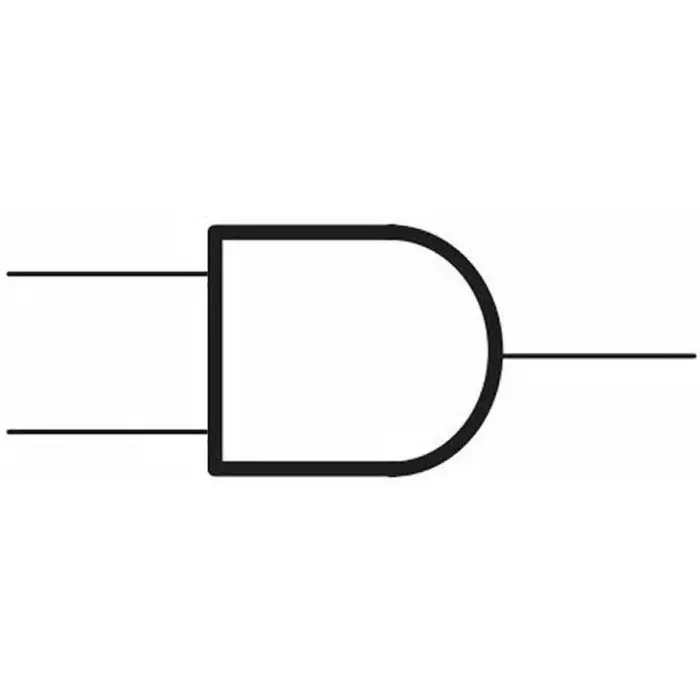

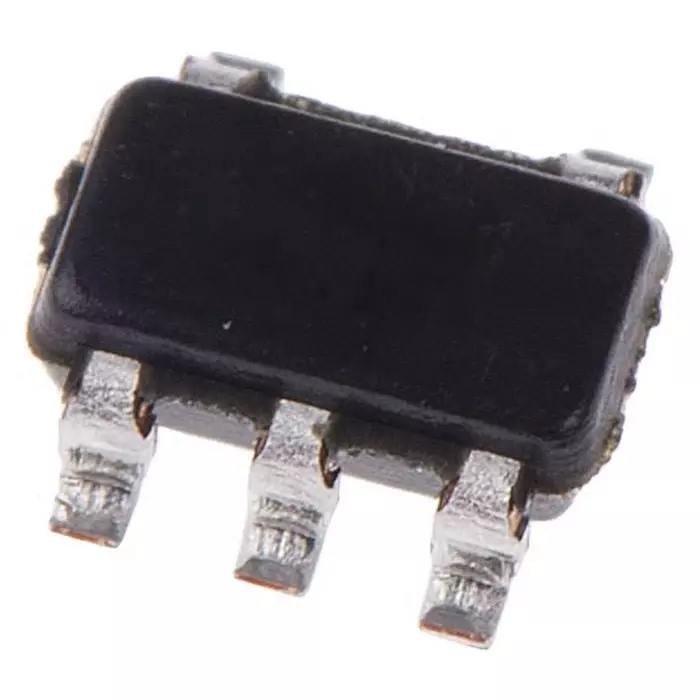

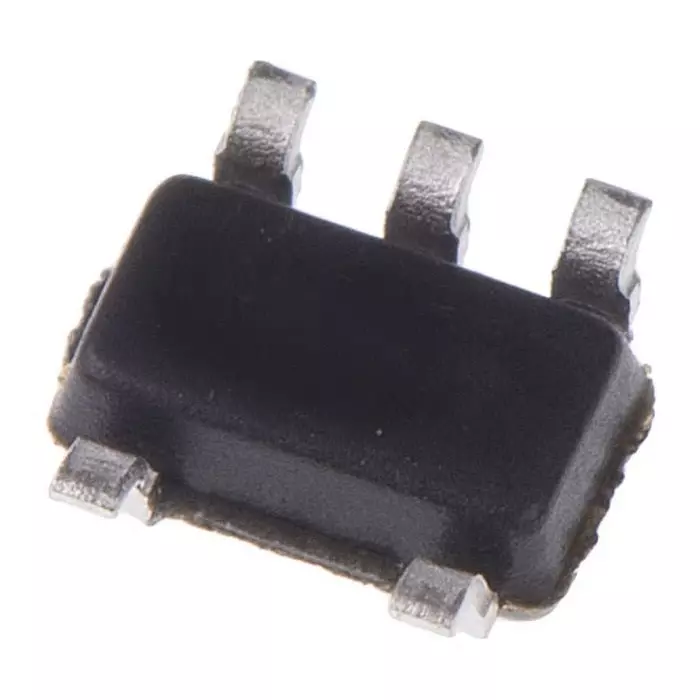

| Type of Product | 2-Input AND Logic Gate, 5-Pin SOT-23 |
| Maximum Operating Temperature | +85 °C |
| Country of Origin | US |
| Length | 2.9mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
2-Input AND Logic Gate, 5-Pin SOT-23 |
Maximum Operating Temperature |
+85 °C |
Country of Origin |
US |
Length |
2.9mm |
Width |
1.6mm |
Height |
1.15mm |
Name of Manufacturer/Packer/Importer |
Texas Instruments |
Dimension |
2.9 x 1.6 x 1.15mm |
Pack of |
Each of 1 Piece |
Package Type |
SOT-23 |
Mounting Type |
Surface Mount |
Pin Count |
5 |
Minimum Operating Temperature |
-40 °C |
Maximum Operating Supply Voltage |
5.5 V |
Minimum Operating Supply Voltage |
2 V |
No. of Elements |
1 |
Manufacturer Model Number |
SN74AHC1G08DBVR |
Maximum Propagation Delay Time @ Maximum CL |
12.3 ns @ 3.3 V, 7.9 ns @ 5 V |
Propagation Delay Test Condition |
50pF |
Logic Family |
AHC |
Maximum Low Level Output Current |
8mA |
Maximum High Level Output Current |
-8mA |
Schmitt Trigger Input |
No |
Logic Function |
AND |
Number of Inputs Per Gate |
2 |
