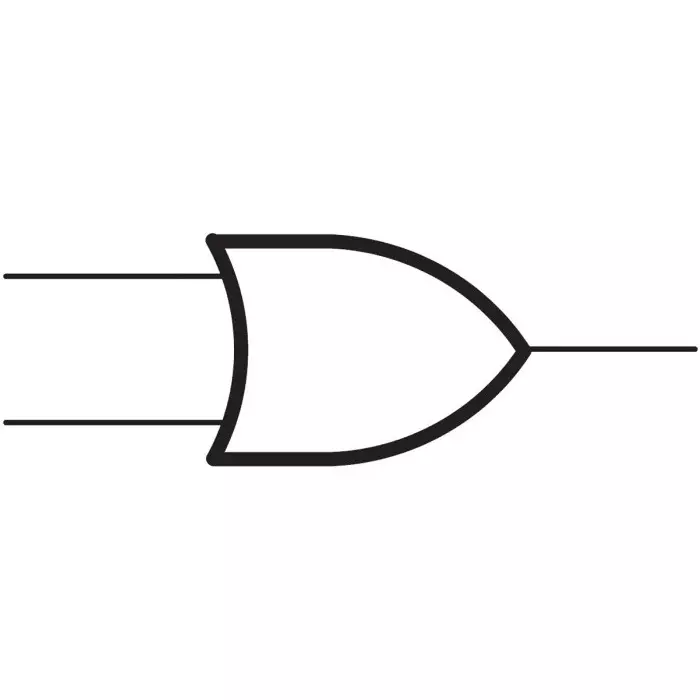

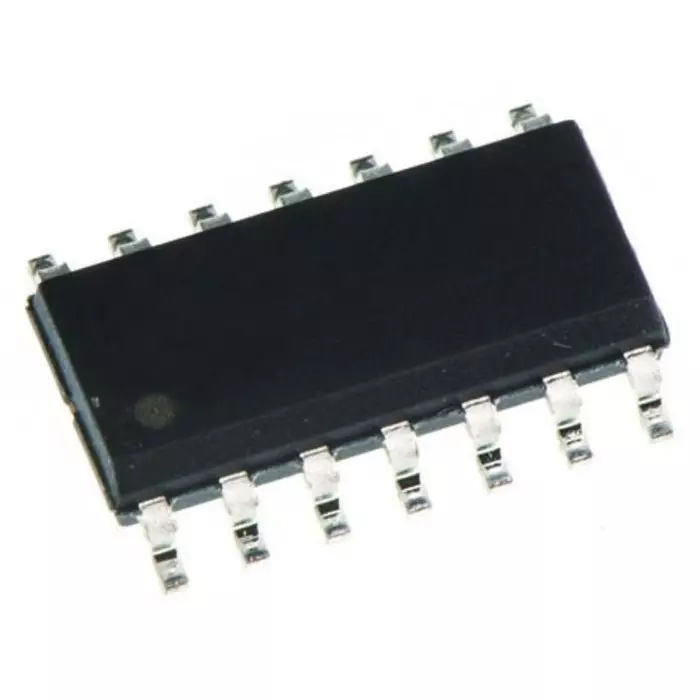

| Type of Product | Quad 2-Input OR Schmitt Trigger Logic Gate, 14-Pin SOIC |
| Maximum Operating Temperature | +85 °C |
| Input Type | Schmitt Trigger |
| Country of Origin | US |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Quad 2-Input OR Schmitt Trigger Logic Gate, 14-Pin SOIC |
Maximum Operating Temperature |
+85 °C |
Input Type |
Schmitt Trigger |
Country of Origin |
US |
Length |
8.65mm |
Width |
3.91mm |
Height |
1.58mm |
Name of Manufacturer/Packer/Importer |
Texas Instruments |
Dimension |
8.65 x 3.91 x 1.58mm |
Pack of |
Each of 1 Piece |
Package Type |
SOIC |
Mounting Type |
Surface Mount |
Pin Count |
14 |
Minimum Operating Temperature |
-40 °C |
Maximum Operating Supply Voltage |
6 V |
Minimum Operating Supply Voltage |
2 V |
No. of Elements |
4 |
Manufacturer Model Number |
SN74HC7032D |
Maximum Propagation Delay Time @ Maximum CL |
130 ns @ 2 V, 22 ns @ 6 V, 26 ns @ 4.5 V |
Propagation Delay Test Condition |
50pF |
Logic Family |
HC |
Maximum Low Level Output Current |
5.2mA |
Maximum High Level Output Current |
-5.2mA |
Schmitt Trigger Input |
Yes |
Logic Function |
OR |
Number of Inputs Per Gate |
2 |
