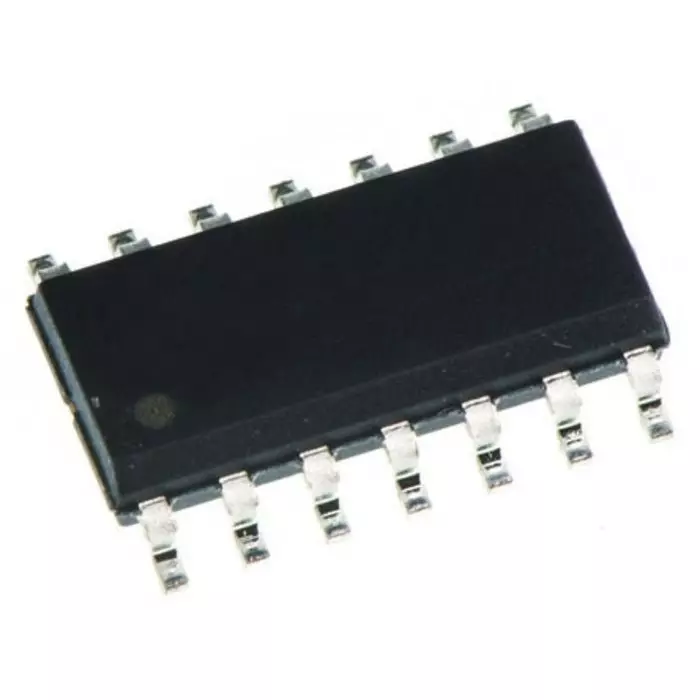

| Type of Product | Quad 2-Input AND Logic Gate, 14-Pin SOIC |
| Maximum Operating Temperature | +70 °C |
| Country of Origin | US |
| Length | 8.65mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Quad 2-Input AND Logic Gate, 14-Pin SOIC |
Maximum Operating Temperature |
+70 °C |
Country of Origin |
US |
Length |
8.65mm |
Width |
3.91mm |
Height |
1.58mm |
Name of Manufacturer/Packer/Importer |
Texas Instruments |
Dimension |
8.65 x 3.91 x 1.58mm |
Pack of |
Each of 1 Piece |
Package Type |
SOIC |
Mounting Type |
Surface Mount |
Pin Count |
14 |
Minimum Operating Temperature |
0 °C |
Maximum Operating Supply Voltage |
5.25 V |
Minimum Operating Supply Voltage |
4.75 V |
No. of Elements |
4 |
Manufacturer Model Number |
SN74LS08D |
Maximum Propagation Delay Time @ Maximum CL |
20 ns @ 5 V |
Propagation Delay Test Condition |
15pF |
Logic Family |
LS |
Maximum Low Level Output Current |
8mA |
Maximum High Level Output Current |
-0.4mA |
Schmitt Trigger Input |
No |
Logic Function |
AND |
Number of Inputs Per Gate |
2 |
