| Type of Product | Rv24 Series Carbon-Based Variable Resistor |
| Model No | RV24YN15S B203 |
| Monotaro ID | 39187906 |
| Type | Single AXIS single type |
Type of Product |
Rv24 Series Carbon-Based Variable Resistor |
Model No |
RV24YN15S B203 |
Monotaro ID |
39187906 |
Type |
Single AXIS single type |
Shape |
Panel mount type |

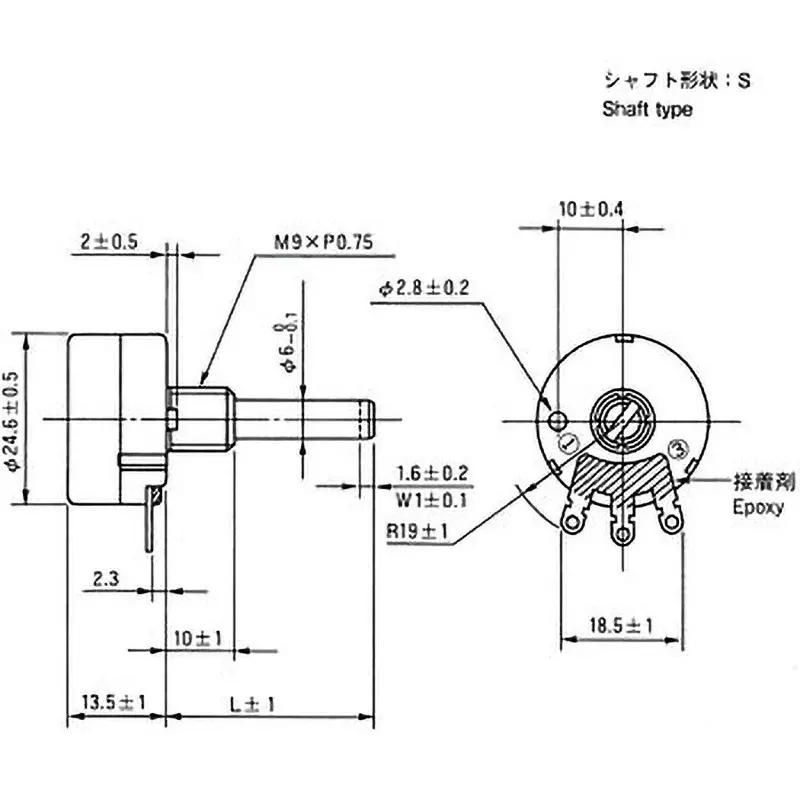

Diameter (Φmm) |
24.6±0.5 |
Withstand Voltage |
AC1000V for 1 minute |
Operating Temperature Range |
-10 to +85°C |
Rated power (W) |
0.25(40℃), 0(85℃) |
RoHS Directive |
Correspondence |
Rotational Torque (nm) (Kgfcm) |
5 to 30[51 to 306] |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Contact Resistance |
(change) Less than 3% or 3Ω greater |
Included Components |
Mounting nut, flat washer, spring washer |
Resistance |
(Residual) 3Ω or less |
Name of Manufacturer/Packer/Importer |
Tokyo Cosmos Electric Co., Ltd. |
Pack of |
1 Pcs |
Maximum Operating Voltage |
DC315 V or rated power, whichever is smaller |
Switch Type |
None |
Shaft Length (mm) |
15 |
Rotation Angle |
(electrical) 280 ± 10 (Mechanical) 300 ± 5 |
Shaft Length |
15±1 mm |
Insulation_Resistance (MΩ) |
100 or more (DC1000V) |

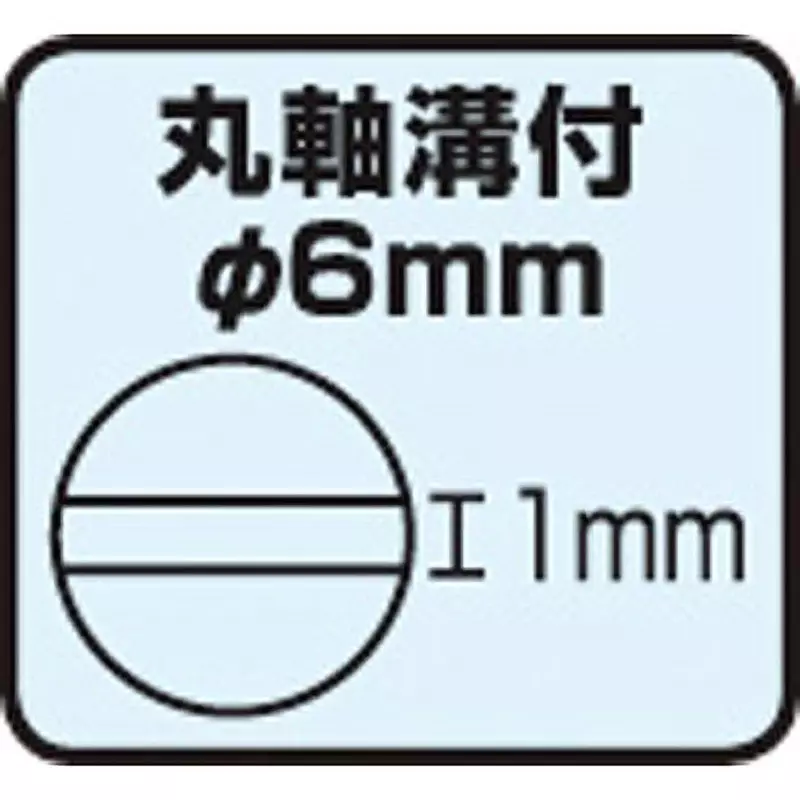

Shaft Shape |
Groove |
Tightening Capacity |
(Nut) 1470mN, m max [15kgf, cm max] |
Solderability |
235℃, 5sec |
