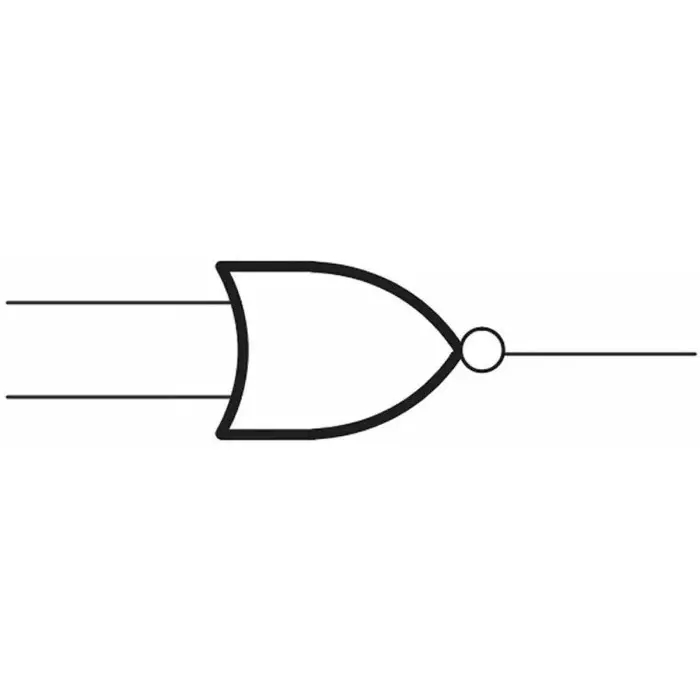

| Type of Product | Quad 2-Input NOR Logic Gate |
| Maximum Operating Temperature | +85 °C |
| Country of Origin | Japan |
| Length | 10.8mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Quad 2-Input NOR Logic Gate |
Maximum Operating Temperature |
+85 °C |
Country of Origin |
Japan |
Length |
10.8mm |
Width |
5.3mm |
Height |
1.5mm |
Name of Manufacturer/Packer/Importer |
Toshiba |
Dimension |
10.8 x 5.3 x 1.5mm |
Pack of |
Each of 1 Piece |
Package Type |
SOP |
Mounting Type |
Surface Mount |
Pin Count |
14 |
Minimum Operating Temperature |
-40 °C |
Maximum Operating Supply Voltage |
18 V |
Minimum Operating Supply Voltage |
3 V |
No. of Elements |
4 |
Manufacturer Model Number |
TC4001BF(N,F) |
Maximum Propagation Delay Time @ Maximum CL |
100 ns @ 10 V, 200 ns @ 5 V, 80 ns @ 15 V |
Propagation Delay Test Condition |
50pF |
Logic Family |
4000 |
Maximum Low Level Output Current |
4mA |
Maximum High Level Output Current |
-4mA |
Schmitt Trigger Input |
No |
Logic Function |
NOR |
Number of Inputs Per Gate |
2 |
