| Type of Product | Static Electricity Removal High Power Bar |
| Model No | HPB-1500 |
| Monotaro ID | 39612537 |

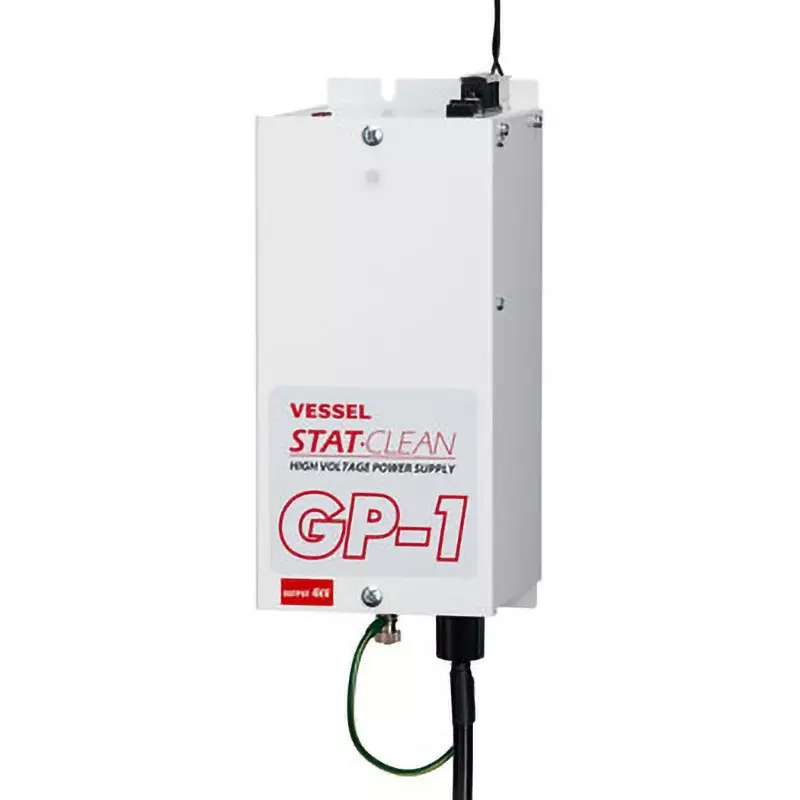

| Suitable For | High Voltage Power Supply: GP-1 4 kV |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Static Electricity Removal High Power Bar |
Model No |
HPB-1500 |
Monotaro ID |
39612537 |
Suitable For |
High Voltage Power Supply: GP-1 4 kV |
Type |
High Voltage Applied Type Static Eliminator |
Material |
Body: Aluminum, Insulation Material: Flame Retardant PBT (V-0), Discharge Needle: Titanium |
Mass (g) |
Static Electricity Removal High Power Bar: 540 / m (Excluding Cable), High Voltage Shielded Cable: 810 |
Part No |
As ONE: 64-4654-49 |
Connector |
Terminal: High-Voltage Connector CON-4 |
Service Life |
10000 Hours is a Guideline (8 Hours x 250 Days x 5 Years) |
Operating Humidity Range |
10 to 85% RH (No Condensation or Freezing) |
Operating Temperature Range |
0-45° |
Effective Length (mm) |
Discharge Needle: 1440 |
Installation Location |
Indoor |
Country of Origin |
Japan |
Maximum No. of Connections |
Two |
Storage Temperature Range |
0-50° |
Included Components |
High-Voltage Cable 3 m (Installed), Mounting Bolt M5 (Installed) |
Name of Manufacturer/Packer/Importer |
Vessel Co.Ltd. |
Structure |
Direct Connection Type (If You Touch The Electrode While Energized, You Will Receive An Electric Shock) |
Ion Generating Type |
AC Corona Discharge Type |
Storage Humidity Range |
10 to 85% RH (No Condensation or Freezing) |
Applied Voltage |
AC3.5 kV 50/60 Hz (Use GP-1 4 kV) |
Cable Length (m) |
High Pressure: 3 |
Mounting Length (mm) |
1460 |
