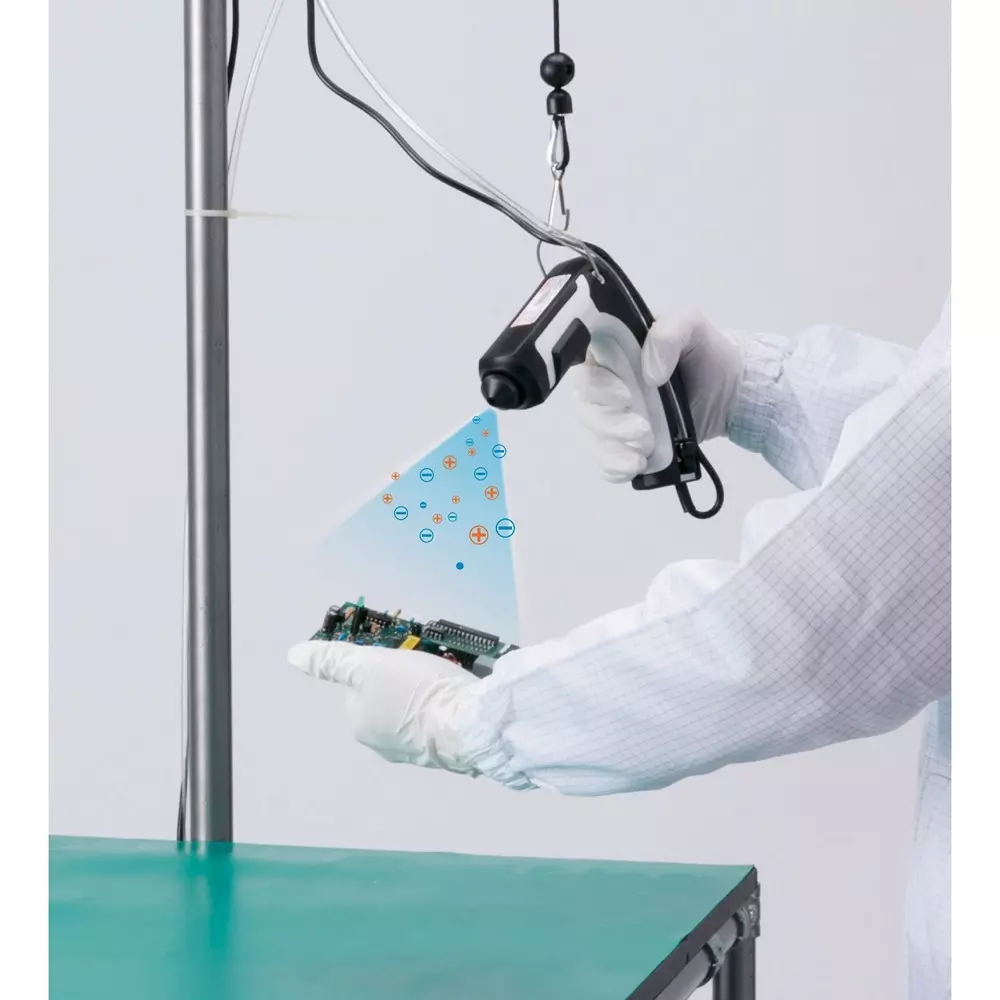

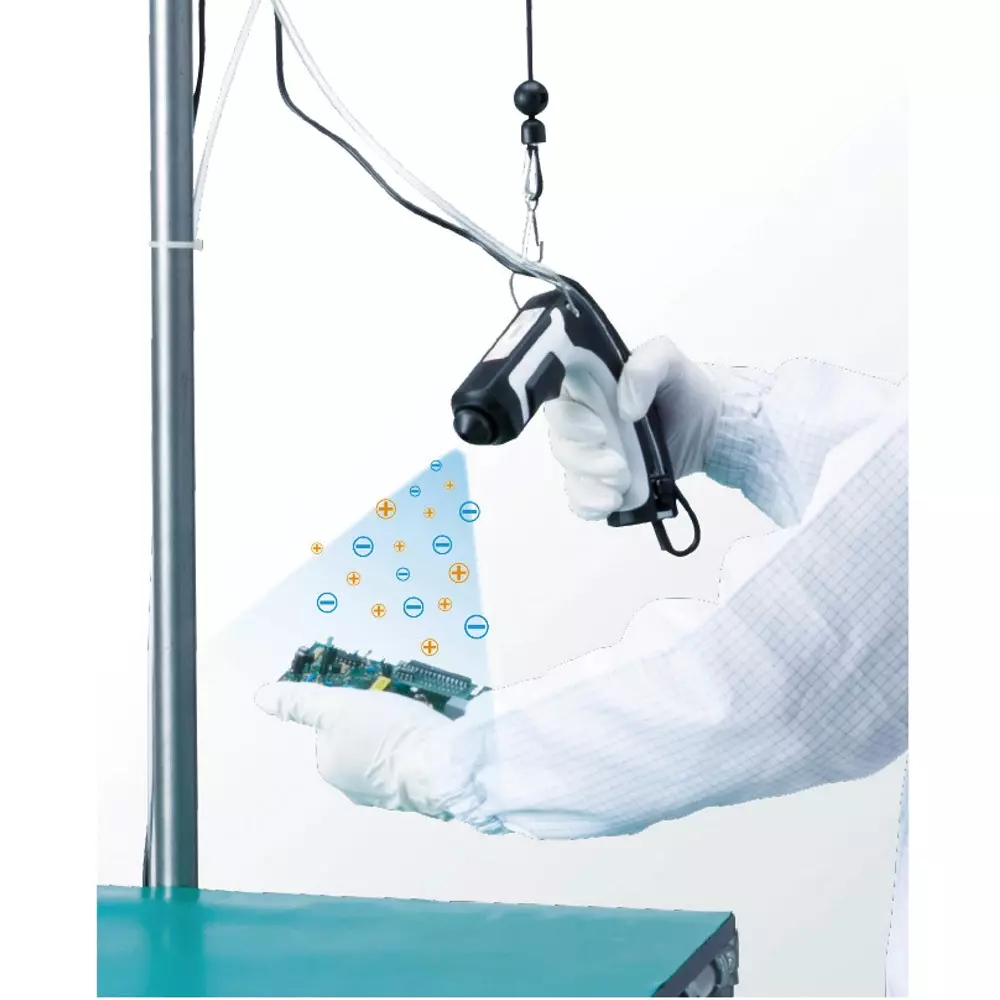

| Type of Product | Ion Air Gun Orca |
| Model No | G2 |
| Monotaro ID | 49367788 |
| Material | Body: Flame Retardant Polycarbonate, Flame Retardant Elastomer, Hook: Stainless Steel, Needle Electrode: Tungsten |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ion Air Gun Orca |
Model No |
G2 |
Monotaro ID |
49367788 |
Material |
Body: Flame Retardant Polycarbonate, Flame Retardant Elastomer, Hook: Stainless Steel, Needle Electrode: Tungsten |
Mass (g) |
About 260 |
Current Consumption (mA) |
100 (Typ) |
Installation Location |
Indoor Non-hazardous Area |
Country of Origin |
Japan |
Included Components |
Instruction Manual, Power Adapter No.AD24-ITC |
Input Voltage |
DC24 V (±5%) |
Name of Manufacturer/Packer/Importer |
Vessel Co.Ltd. |
Trusco Part No. |
785-0841 |
Ion Balance |
Within ± 10 V (at the time of Shipment, Measuring Distance 300 mm) |
Static Elimination Time |
0.4 seconds (0.6 MPa at Shipping, Measuring Distance 150 mm) |
Ion Generation Method |
AC High Frequency Corona Discharge Type |
Applied Voltage |
About AC4.5 |
Ozone Generation (PPM) |
0.05 or less (measuring distance 50mm) |
Range to Use (mm) |
50-300 |
Alarm |
High Voltage Abnormal Output Stop (Red LED) |
Working Air Pressure (MPa) |
0.1 to 0.6 |
Protective Function |
Current Fuse (0.5 A on Board) |
