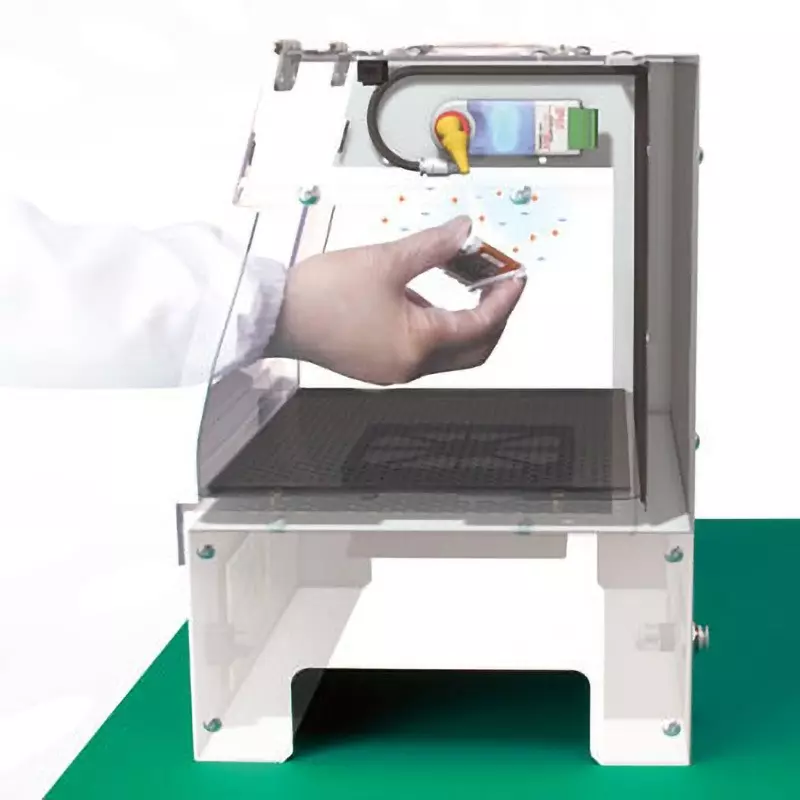

| Type of Product | Ion Parts Cleaner |
| Model No | IPC-A4 |
| Monotaro ID | 35119341 |
| Material | Box/Steel, Rigid PVC Board Plate/Stainless Steel Adhesive Sheet/Polyurethane |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ion Parts Cleaner |
Model No |
IPC-A4 |
Monotaro ID |
35119341 |
Material |
Box/Steel, Rigid PVC Board Plate/Stainless Steel Adhesive Sheet/Polyurethane |
Mass (g) |
About 6.0 |
Power Consumption (W) |
17 |
Current (mA) |
700 |
Country of Origin |
Japan |
Included Components |
Power Adapter (Input AC100-240V, Output DC24V), Slide Bracket, Needle Electrode Driver |
Input Voltage |
DC24 V (±5%) |
Name of Manufacturer/Packer/Importer |
Vessel Co.Ltd. |
Dimension |
350x300x250 mm (HxWxD) (Excluding Protrusions) |
Trusco Part No. |
375-5801 |
Air Consumption (l/min) |
187 (0.3 MPa, Continuous Mode) |
Suitable Fluid |
Clean Air (0.1-0.3 MPa) |
Noise Level Db(A) |
86.5 (0.3 Mpa, Continuous Mode, 1 m Front) |
Ion Generation Method |
Corona Discharge Type (Pinpoint Nozzle N-2 is Included) |
Applied Voltage |
AC6.0 kV (p-p) |
Operating Temperature/Humidity Range |
5 to 40°C, 35 to 65% RH (with No Icing or Condensation) |
Timer Setting Time |
1, 2, 5, 10, 30 seconds off timer (switched with DIP switch) |
Ozone Generation (PPM) |
0.05 or less (front 50mm) |
