| Type of Product | Ion Parts Cleaner |
| Model No | IPC-V4 |
| Monotaro ID | 71243297 |
| Mass (Kg) | 3.8 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ion Parts Cleaner |
Model No |
IPC-V4 |
Monotaro ID |
71243297 |
Mass (Kg) |
3.8 |
Power Consumption (W) |
18 |
Part No |
As ONE: 64-8927-66 |
Driving Time |
Continuous 1/3/5/10/30 seconds, Pulse 50 / 90 ms Intermittent |
Alarm Output |
High Voltage Output Error Warning (Red LED) |
Country of Origin |
Japan |
Included Components |

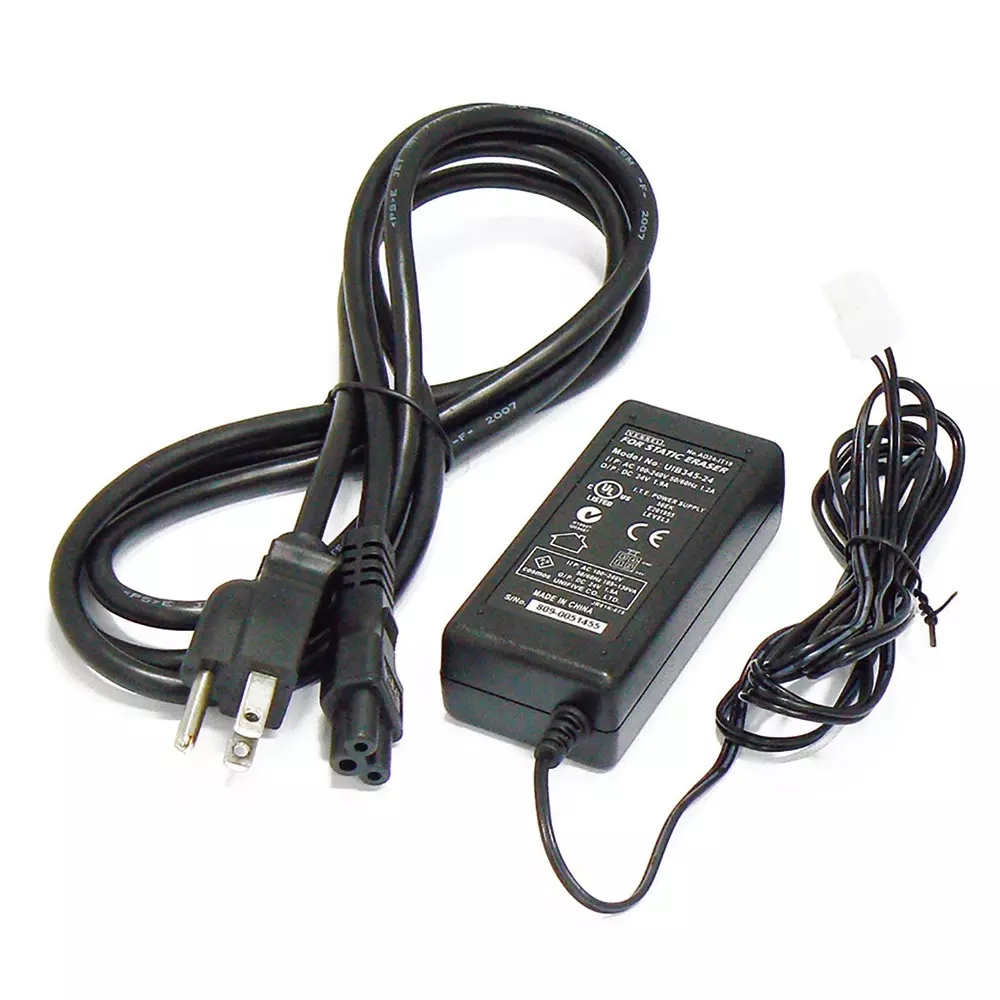

Power Adapter AD24-IT19, Adhesive Gel Sheet for Wall Surface (with Magnet Sheet) IPC-V4GB (Installed), Adhesive Gel Sheet Plate for Bottom, Paper Pack Filter (6 Sheets) IPC-A3F, 2P-3P Conversion Adapter, Tilt Adjustment Spacer (2 Pcs), Instruction Manual (IPC-V4, N-3) |
Dimensions WxDxH (mm) |
200 x 289 x 297 (Excluding Protrusions) |
Input Voltage |
DC24 V (±5%) [Attached Power Adapter: AC100-240 (50 / 60Hz)] |
Name of Manufacturer/Packer/Importer |
Vessel Co.Ltd. |
Filter |
[Dust Collection] Self-Adhesive Urethane Gel Sheet / Paper Pack Filter |
Air Consumption (l/min) |
161 (0.3 Mpa In Continuous Mode) |
Suitable Fluid |
Clean Air (CDA) |
Noise Level Db(A) |
88.3 (0.3Mpa, Measuring Distance 600Mm) |
Suitable Air Pressure |
0.1-0.3 Mpa |
Operating Temperature/Humidity Range |
5 to 40°C, 35 to 65% RH (No Condensation and Freezing) |
Static Pressure |
460 Pa (Built-in Fan) |
Basic Replacement Parts |
Adhesive Gel Sheet for Wall Surface with Magnet Sheet IPC- V 4GB, Adhesive Gel Sheet for Bottom Surface IPC-V4GD, Needle Electrode GN-H, Paper Pack Filter (6 Sheets) IPC-A3F |
Tube Outer Diameter x Inner Diameter (mm) |
8x5 |
Air Volume of Dust Collector (m³/min) |
1.13 m³/min (Built-in Fan) |
Main Unit Material |
Exterior: SPCC / Transparent Hood: PVC |
