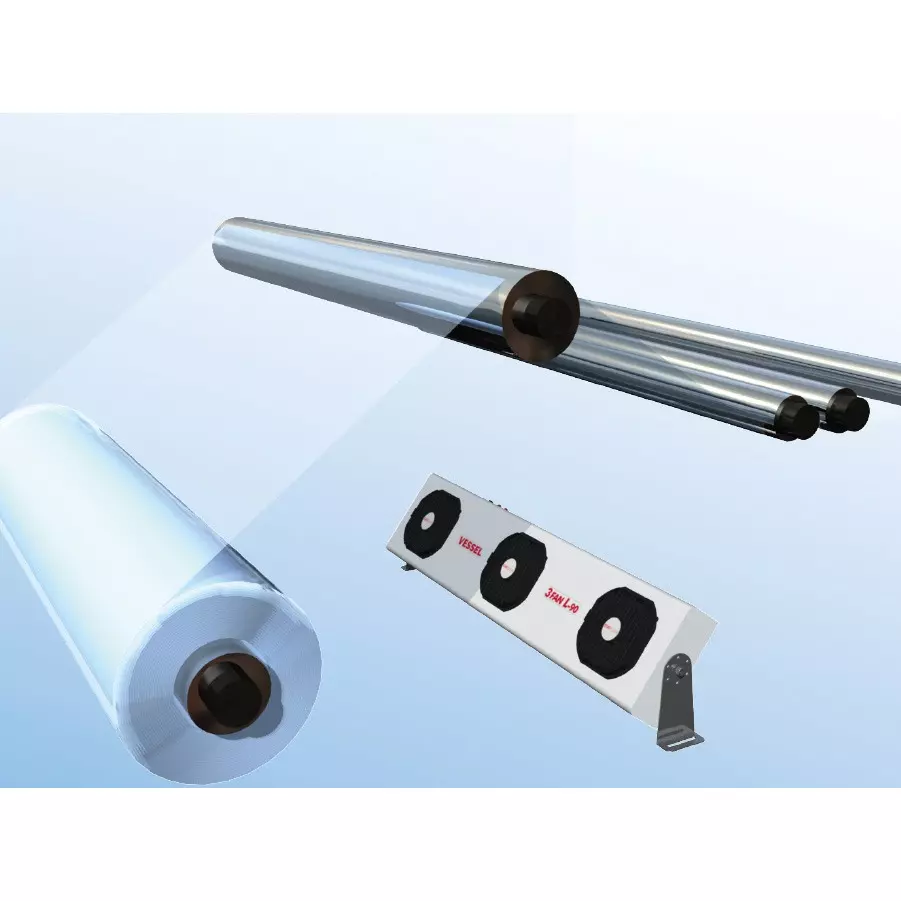

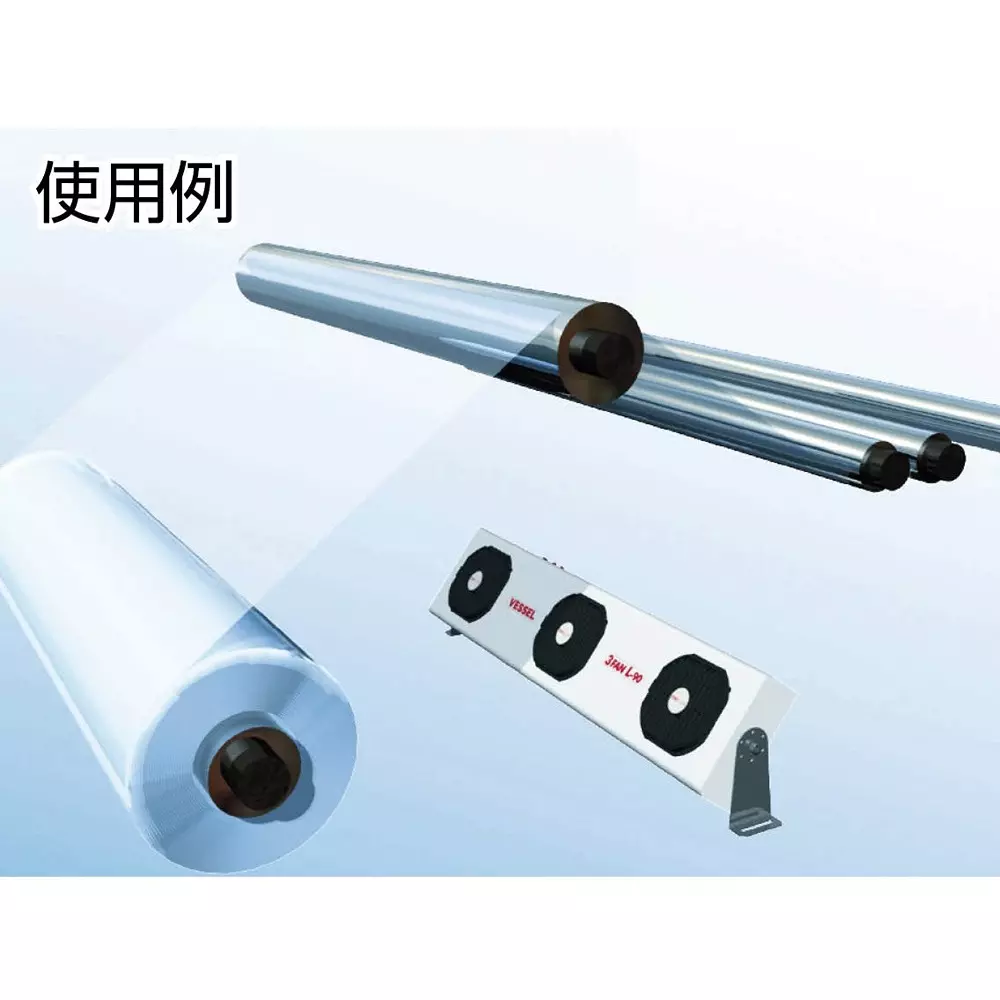

| Type of Product | Overhead Ionizing Triple-Fan |
| Model No | L-90-E |
| Monotaro ID | 49367772 |
| Material | Body: SPCC, Stand: Stainless Steel, Front Cover: Flame Retardant ABS Resin, Discharge Needle: SUS304 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Overhead Ionizing Triple-Fan |
Model No |
L-90-E |
Monotaro ID |
49367772 |
Material |
Body: SPCC, Stand: Stainless Steel, Front Cover: Flame Retardant ABS Resin, Discharge Needle: SUS304 |
Mass (g) |
4.7 |
Installation Location |
Indoor |
Country of Origin |
Japan |
Included Components |
Power Adapter No.AD24-IT, AC Input Cable (1.8m) |
Input Voltage |
DC24 V (±5%) |
Name of Manufacturer/Packer/Importer |
Vessel Co.Ltd. |
Trusco Part No. |
785-1286 |
Ion Balance |
Within ± 10 V (at the time of Shipment, Measuring Distance 300 mm) |
Ion Generation Method |
AC High Frequency Corona Discharge Type |
Applied Voltage |
9.5 kV (p-p) |
Noise Level (dB) |
72 (Air Volume Fine A Characteristic, Measuring Distance 1 m) |
Ozone Generation (PPM) |
0.05 or less (measuring distance 50mm) |
Range to Use (mm) |
150-900 |
Alarm |
High Voltage Output Stopped (Red LED), Fan Locked (Red LED) |
Protective Function |
Fan Motor Rotation Monitoring Function (Restraint Detection), High Voltage Output Shutdown Function (Overload Detection) |
Air Volume |
4.7 m³/min (3 Aircraft: Maximum Air Flow 1 m) |
Current Consumption (A) |
3 (Max.) |
