| Type of Product | Safety Controller |

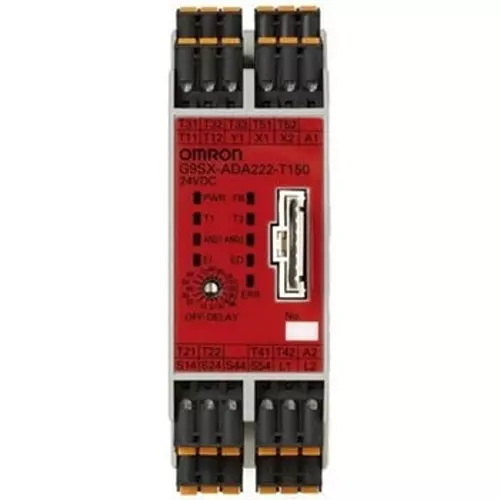

| Model No | G9SX-ADA222-T150-RC-DC24 |
| Country of Origin | Japan |
| Rated Voltage (V) | DC24 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Safety Controller |
Model No |
G9SX-ADA222-T150-RC-DC24 |
Country of Origin |
Japan |
Rated Voltage (V) |
DC24 |
Pack of |
1 Pcs |
Function |
High function unit |
Monotaro ID |
46382901 |
Output |
(Safe instantaneous output/Safe off-delay output), P-channel MOS FET transistor output, Load current When using 1 output: DC1A or less, When using 2 outputs: DC0.8A or less |
Operating Temperature Range |
-10 to 55℃ (no condensation or freezing) |
Mass (g) |
About 200 |
Response Time |
(ON → OFF) 15ms or less |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operating Time |
(OFF→ON) Safety input ON: 50 ms or less, logical connection input ON: 100 ms or less |
Operation Ambient Temperature (°C) |
-10 to +55 (with no icing or condensation) |
Insulation Resistance (MOhm) |
Logic connection input terminal ⇔ Power supply, other I / O terminals, all terminals ⇔ Between DIN rails: 20 mohm or more DC100 V Mega |
Reset |
Input time (reset pressing time) 100 ms or more |
Specifications |
Overvoltage category II |
Output Configuration |
(Safety instantaneous output) 2 outputs, (Safety off-delay output) 2 outputs, (Auxiliary output) 2 outputs |
Input Channel |
1ch, 2ch shared |
Wiring Length |
(Maximum of safety input and logic connection input) 100m or less (External connection impedance: 100Ω or less and 10nF or less) |
Leakage Current (mA) |
(At OFF) 0.1 mA or less (safety output, auxiliary output) |
Power Consumption (W) |
less than 4 |
Shock Resistance |
300m/s² |
Import Country |
Direct Import from Japan |
