Ships within 25 days
View
View
View
View

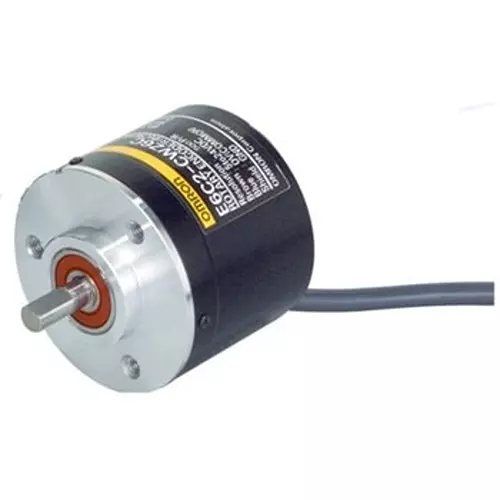

| Type of Product | Incremental Rotary Encoder |
| Type | Rotary encoder |
| Model No | E6C2-CWZ1X-200P/R-2M |
| Series | E62C |
Type of Product |
Incremental Rotary Encoder |
Type |
Rotary encoder |
Model No |
E6C2-CWZ1X-200P/R-2M |
Series |
E62C |
Country of Origin |
Japan |
Protection Class |
IEC standard IP64 |
Pack of |
1 Pcs |
Monotaro ID |
46439617 |
Output |
Line driver output |
Mass (g) |
Approx. 400 (packed) |
Included Components |
Instruction manual Note: Couplings, fittings, and hexagonal spanners are sold separately. |
Classification |
Incremental shaft type |
Connection Type |
Cord drawer type |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Height (mm) |
60 |
Resolution |
200P/R |
Case Material |
Zinc alloy |
Cable Length (m) |
2 |
Maximum Rotation Speed (min⁻¹[rpm]) |
6000 |
Outer Diameter (Φmm) |
50 |
Current Consumption (mA) |
160 or less |
Main Unit Material |
Aluminum |
Shaft |
Round type |
Output Capacity |
AM26LS31 equivalent output current/<br> H level: IO=-20mA<br> L level: IS=20mA<br> Output voltage/<br> VO=2.5V or more<br> VS=0.5V or less |
Power Supply Voltage |
DC5 ± 5% Ripple (pp) 5% or less |
Import Country |
Direct Import from Japan |
