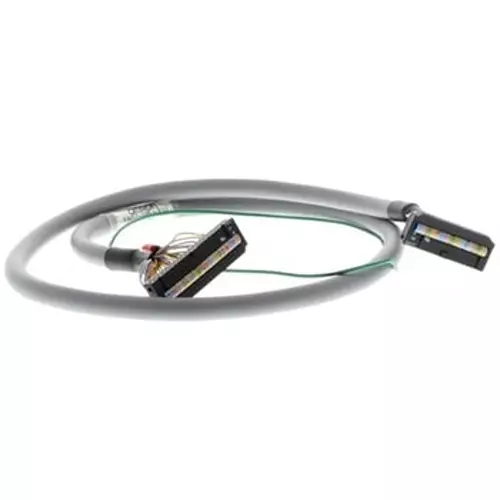

| Type of Product | Servo Cable |
| Model No | XW2Z-050J-A33 |
| Rated Current (A) | 1 (temperature rise + 30℃ MAX) |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Servo Cable |
Model No |
XW2Z-050J-A33 |
Rated Current (A) |
1 (temperature rise + 30℃ MAX) |
Country of Origin |
Japan |
Suitable For |
[Driver] G5/G Series, Smart Step 2 R88D-KT/GT, R7D-BP |
Rated Voltage (V) |
DC24 |
Protection Class |
IP00 IEC standard |
Pack of |
1 Pcs |
Monotaro ID |
46592673 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
0 to +55 |
Contact Resistance (ohm) |
(Connector part) 20 or less (20mV or less, 100mA or less) |
Insulation Resistance (MOhm) |
5 mohm or more (at 500 V DC) |
Number of Axis |
2 axes |
Cable Length (m) |
0.5 |
Withstand voltage (V / min) |
(Connector part) AC500 (Leakage current 1mA or less) |
Cable |
UL2464 interface cable |
Suitable Unit Model |
CJ1M For CJ1M-CPU21 / 22/23 |
Import Country |
Direct Import from Japan |
