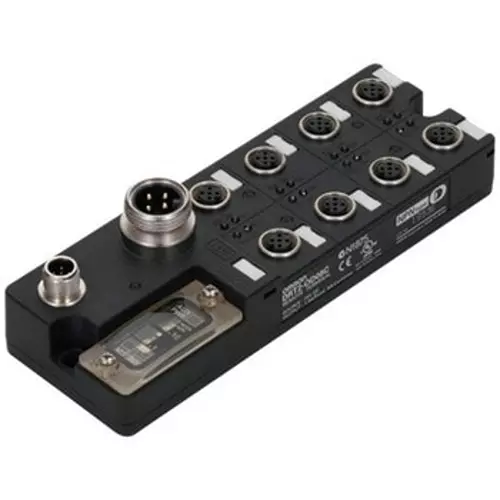

| Type of Product | Environmentally Resistant Terminal |
| Model No | DRT2-ID08CL-1 |
| Country of Origin | Japan |
| Protection Class | IP67 |
Type of Product |
Environmentally Resistant Terminal |
Model No |
DRT2-ID08CL-1 |
Country of Origin |
Japan |
Protection Class |
IP67 |
Pack of |
1 Pcs |
Monotaro ID |
46385482 |
Vibration Resistance |
10~60Hz double amplitude 0.7 mm/60~150Hz 50(m/s² )/ 80min each in X, Y, and Z directions |
Withstand Voltage |
500 VAC (between isolated circuits) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10 to 55 |
Insulation Resistance (MOhm) |
20 mohm or more (between isolated circuits) |
Ambient Humidity to Use |
25 to 85% (non-condensing) |
Specifications |
●I/O power supply connector: 7/8-16UN ●Screw tightening torque (N m): 0.39 to 0.49 (circular connector (co mmunication connector, power supply, I/O)) / 1.47 to 1.96 (M5 (from the front) unit installation))●Internal I/O co mmon wire treatment: PNP compatible●Storage ambient temperature (℃): -20 to 65●Ambient operating atmosphere: No corrosive gases●Installation method: M5 screw mounting (front, back friend) |
Communication Power Consumption Current |
35 mA or less (at 24V DC), 50 mA or less (at 11V DC) |
Communication Power Supply Voltage |
DC11-25 (supplied from co mmunication connector) |
Noise Resistance |
Compliant with IEC61000-4-4 2kV (power line) |
Shock Resistance (m/s²) |
150, 3 times each in 6 directions on 3 axes |
Delay Time |
1.5 ms or less (ON), 1.5 ms or less (OFF) |
I/O Power Supply Voltage (V) |
DC20.4 to 26.4(DC24-15 to +10%) |
Number of Input/Output Points |
8 inputs |
Mounting Strength |
100 N |
Communication Connector Strength (N) |
30 |
Communication Connector |
M12 |
Import Country |
Direct Import from Japan |
