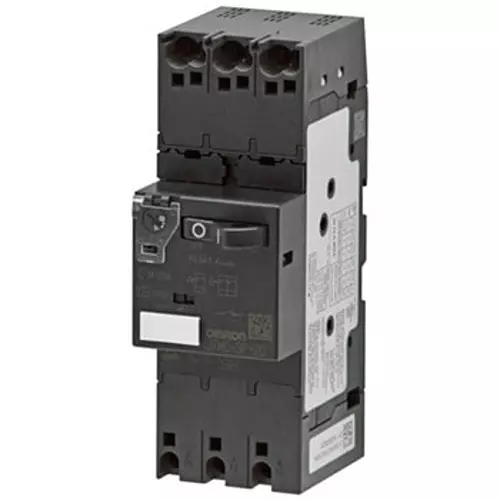

| Type of Product | Manual Motor Starter |
| Model No | J7MC-3P-20 |
| Rated Current (A) | 20 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Manual Motor Starter |
Model No |
J7MC-3P-20 |
Rated Current (A) |
20 |
Country of Origin |
Japan |
No. of Pole |
3 |
Protection Class |
IP20(IEC60529) |
Pack of |
1 Pcs |
Monotaro ID |
58249556 |
Rated Impulse Withstand Voltage (kV) |
6 |
Mechanical Durability |
100,000 times (In=0.16 to 20A) |
Storage Temperature |
-40 to 80℃ (no condensation or freezing) |
Mass (g) |
430 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Specifications |
● Phase loss protection: Yes ● Trip display: Yes ● Test trip function: Yes |
Shock Resistance (m/s²) |
(Shock value) 50 |
Applicable Standard |
EN 60947-2 (IEC 60947-2, IEC 60947-4-1), UL 60947-4-1, CSA 22.2 No.60947-4-1, CCC GB/T 14048.2, GB/T 14048.4, Electrical Appliance and Material Safety Law (Non-specified electrical appliances), UKCA |
Switch Shape |
Rocker switch (standard type) |
Rated Operating Current (A) |
14 to 20 |
Rated Frequency (Hz) |
50/60 shared |
Full Load Current (Amps) |
15.5(AC200V/50Hz), 20(AC400V/50Hz) |
Current (A) (50/60Hz) |
(Instant release) 260 |
Operating Temperature (c) |
-20 to 60 |
Handle |
Rocker switch (standard type) |
Rated Insulation Voltage (V) |
AC690 |
Electrical Durability |
100,000 times (In=0.16 to 20A) |
Installation Altitude (m) |
2000 or less |
Import Country |
Direct Import from Japan |
