| Type of Product | Short-Circuit Plug |
| Rated Current (A) | 2 |
| Part No | 64-3399-73 |

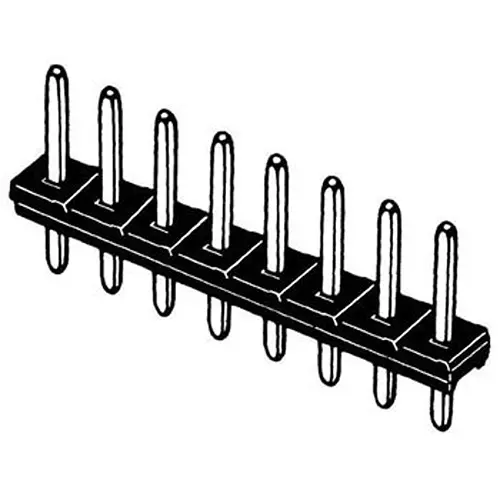

| Shape | Single row plug type for short circuit (low profile) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Short-Circuit Plug |
Rated Current (A) |
2 |
Part No |
64-3399-73 |
Shape |
Single row plug type for short circuit (low profile) |
Country of Origin |
Japan |
Rated Voltage (V) |
AC300 |
No. of Pole |
4-Pole |
Standard |
RoHS directive, UL standard (File No.E103202) |
Monotaro ID |
8594311 |
Withstand Voltage |
700 VAC, 1 min (leakage current 1 mA or less) |
Manufacturer Part Number |
XJ8B-0411 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Contact Material |
Brass |
Housing Material |
PPS resin with glass (UL94V-0) / Black |
Surface Treatment |
Nickel base gold plating (0.15 μm) |
Total Removal Force |
0.39 N or more (with short-circuit plug) |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Total Insertion Force |
1.96N or less (with short-circuit dedicated plug) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |

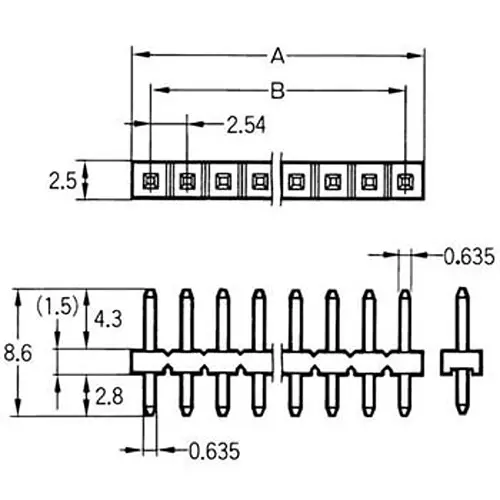

Dimension A (Φmm) |
φ10.2 mm |
Insertion / Removal Durability (Times) |
50 |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Dimension B (Φmm) |
φ7.62 mm |
Import Country |
Direct Import from Japan |
