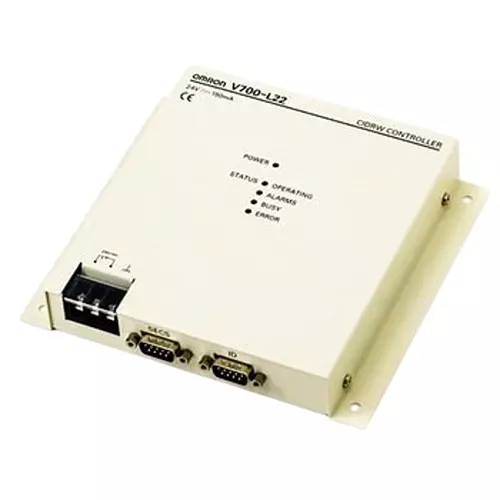

| Type of Product | RFID System |
| Model No | V700-L22-V2 |
| Country of Origin | Japan |
| Interface | RS-232C (upper) |
Type of Product |
RFID System |
Model No |
V700-L22-V2 |
Country of Origin |
Japan |
Interface |
RS-232C (upper) |
Protection Class |
IP20 (IEC60529 standard) |
Monotaro ID |
66520947 |
Mass (g) |
About 560 |
Vibration Resistance |
10 to 150Hz, double amplitude 0.20 mm, acceleration 15 m/s2 vibration in each direction of X, Y, Z, 10 sweeps for 8 min each |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
0 to 40 (no freezing) |
Insulation Resistance (MOhm) |
50 or more (with DC500 V megger) between all power terminals and frame ground terminal |
Operating Ambient Humidity |
10 to 85%RH (no condensation) |
Shock Resistance (m/s²) |
150 shocks in each of the X, Y, and Z directions, 3 times each, 18 times in total |
Case Material |
SECC (painting) |
Current Consumption (mA) |
150 or less |
Power Supply Voltage |
DC24 V(allowable voltage fluctuation range DC20.4 to 26.4) |
Withstand voltage (V / min) |
AC500V (50/60Hz) applied to all power terminals and ground terminal |
Storage Temperature Range |
-15 to 65 ℃ (no freezing) |
Storage Humidity Range |
10 to 95% RH (no condensation) |
Ground Clearance |
Class D grounding (conventional type 3 grounding) |
Import Country |
Direct Import from Japan |
