| Type of Product | RFID System |

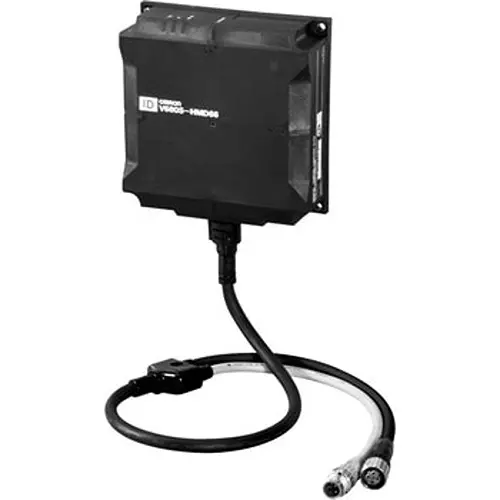

| Model No | V680S-HMD66-EIP |
| Country of Origin | Japan |
| Interface | Ethernet 10BASE-T/100BASE-TX (upper) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
RFID System |
Model No |
V680S-HMD66-EIP |
Country of Origin |
Japan |
Interface |
Ethernet 10BASE-T/100BASE-TX (upper) |
Protection Class |
IP67 (IEC 60529:2001), oil-proof equivalent to IP67F (JIS C 0920:2003 Annex 1) |
Monotaro ID |
66520922 |
Mass (g) |
About 760 |
Included Components |
Instruction manual, copy of EC declaration of conformity, IP address memo label |
Vibration Resistance |
A variable vibration of 10Hz to 500Hz, double amplitude of 1.5 mm, and acceleration of 100 m/s2 is applied 10 times in 3 directions, up and down, left and right, and front and back for 11 minutes, and there are no abnormalities. |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10 to 55 (no freezing) |
Insulation Resistance (MOhm) |
20 or more between all cable terminals and case (at 500 V DC megger) |
Operating Ambient Humidity |
25 to 85%RH (no condensation) |
Shock Resistance (m/s²) |
500 shock applied 3 times in each direction in 6 directions, 18 times in total, with no abnormalities. |
Case Material |
PBT resin |
Current Consumption (mA) |
200 or less |
Power Supply Voltage |
DC24 V(-15% to +10%) |
Outer Dimensions |
120x120x40 mm (excluding protrusions and cables) |
Withstand voltage (V / min) |
Between all AC1000 (50/60Hz) cable terminals and the case |
Storage Temperature Range |
-25 to 70 ℃ (no freezing) |
Storage Humidity Range |
25 to 85% RH (no condensation) |
Filled Resin Material |
Urethane |
Protocol |
EtherNet/IP (upper co mmunication) |
Import Country |
Direct Import from Japan |
