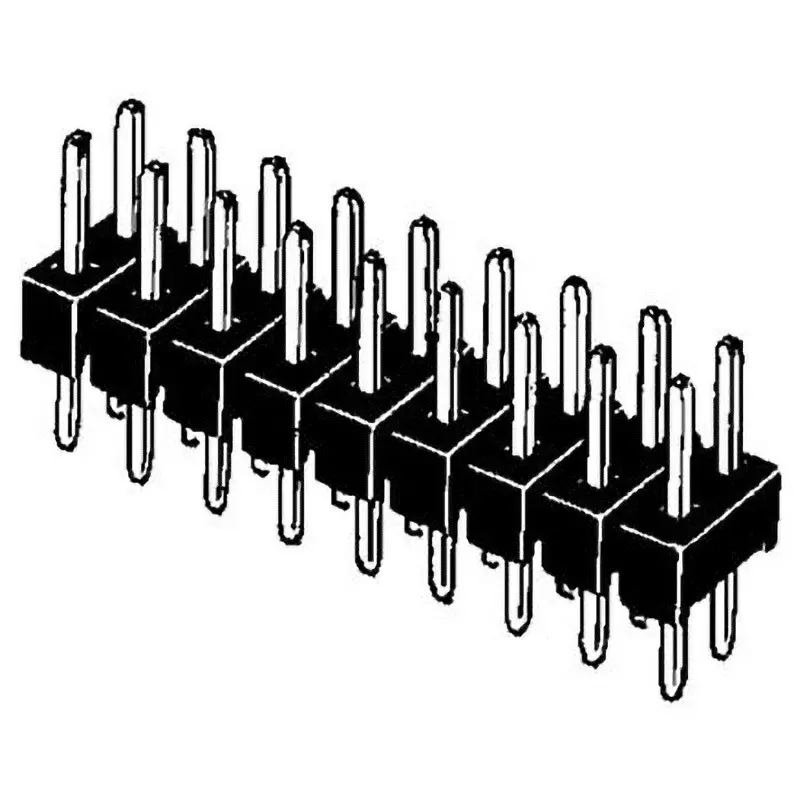

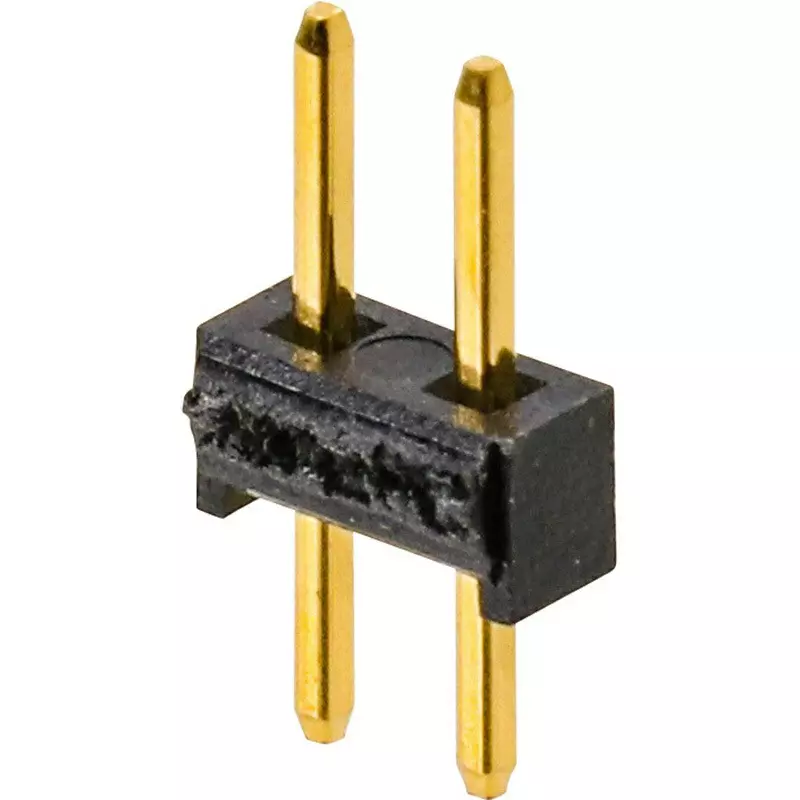

| Type of Product | Short-Circuit Dedicated Plug |
| Rated Current (A) | 2 |
| Part No | 64-3395-90 |
| Shape | Short-circuit dedicated plug 2-row type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Short-Circuit Dedicated Plug |
Rated Current (A) |
2 |
Part No |
64-3395-90 |
Shape |
Short-circuit dedicated plug 2-row type |
Country of Origin |
Japan |
Rated Voltage (V) |
AC300 |
No. of Pole |
2-Pole |
Standard |
RoHS directive |
Monotaro ID |
8594205 |
Withstand Voltage |
700 VAC, 1 min (leakage current 1 mA or less) |
Manufacturer Part Number |
XG8T-0231 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Contact Material |
Brass |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Surface Treatment |
Nickel base gold plating (0.15 μm) |
Total Removal Force |
0.39 N or more (with short-circuit plug) |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Total Insertion Force |
1.96N or less (with short-circuit dedicated plug) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |

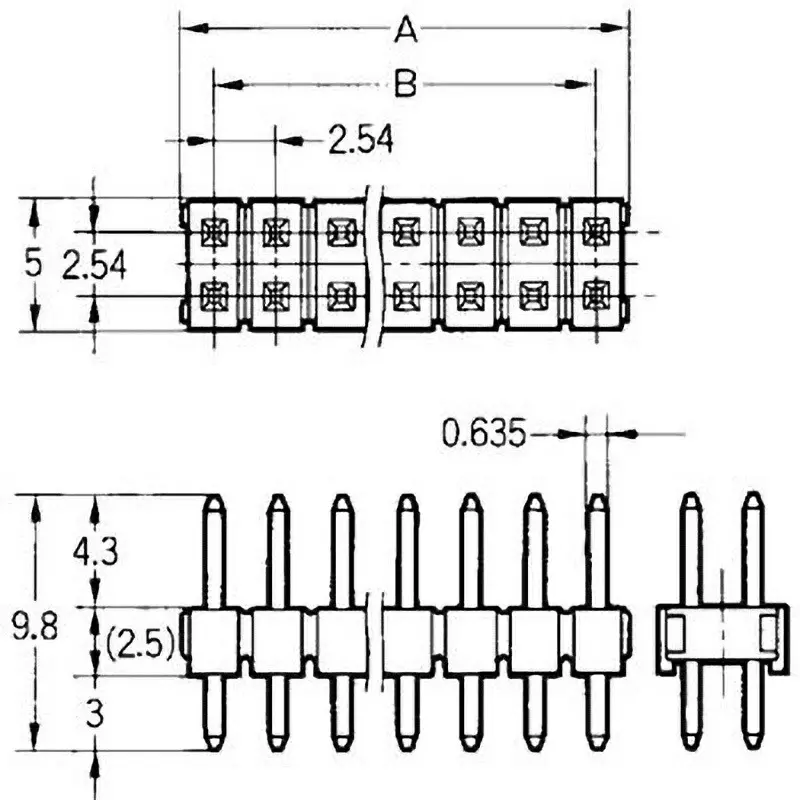

Dimension A (Φmm) |
φ2.5 mm |
Insertion / Removal Durability (Times) |
50 |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Import Country |
Direct Import from Japan |
