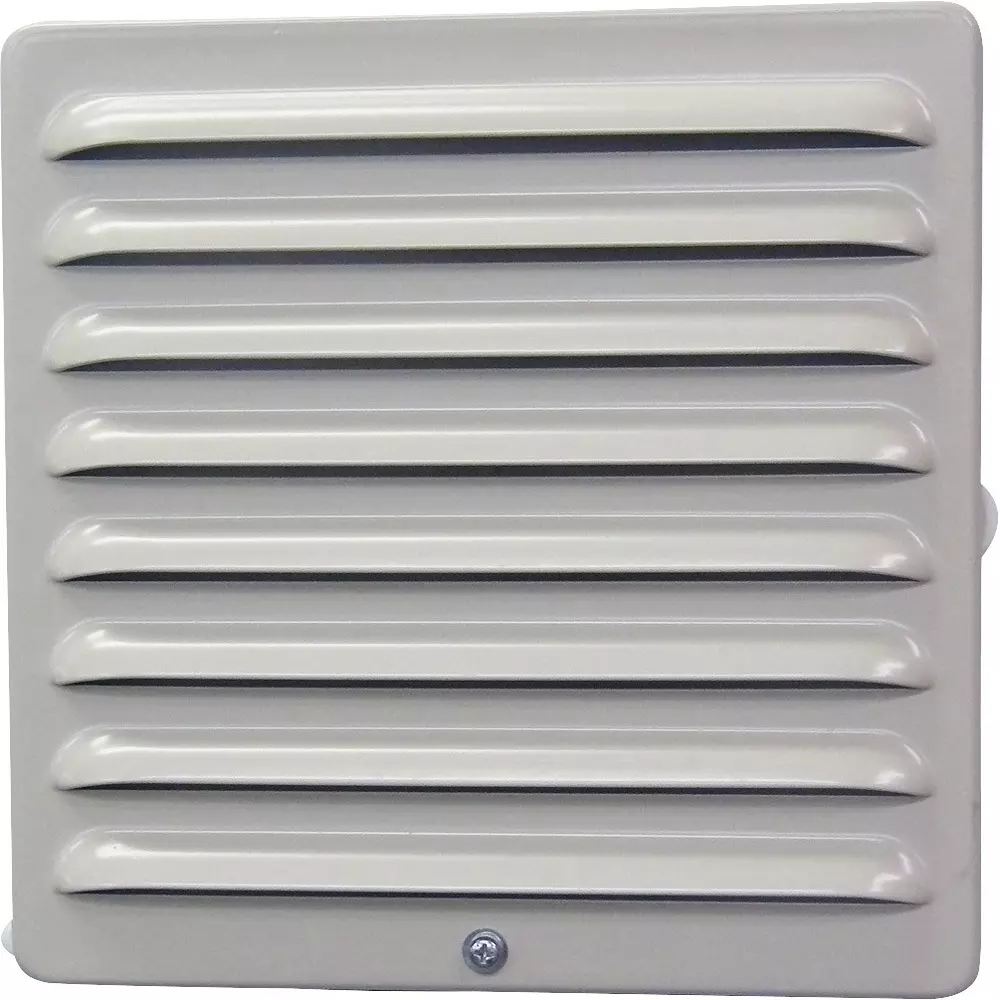

| Type of Product | Thin, Jet-Proof Gallery |
| Color | (Outer louver) 5Y7/1 painted (semi-gloss), (filter case) 5Y7/1 painted |
| Model No | GTS-20W-H |
| Shape | 1 train |
Type of Product |
Thin, Jet-Proof Gallery |
Color |
(Outer louver) 5Y7/1 painted (semi-gloss), (filter case) 5Y7/1 painted |
Model No |
GTS-20W-H |
Shape |
1 train |
Country of Origin |
Japan |
Material |
Outer louver: SUS304, Inner louver: Polypropylene (Flame retardant: UL94 V-0), Filter: High-performance dust filter (Collection efficiency 65%) |
Monotaro ID |
19722809 |
Thickness (mm) |
(Outer louver) 1.5, (Filter case) 1.2 |
Length (mm) |
34.5 |
Width (mm) |
250 |
Name of Manufacturer/Packer/Importer |
Shinohara Electric Co., Ltd. |
Height (mm) |
250 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
160-5985 |
Panel cut dimensions (mm) |
210x210 (heightxwidth) |
Opening area (cm2) |
125 |
Mounting Screw |
Outer louver: Pan flat W/Nylon W built-in M5x8 |
Nut |
Disc spring nut: M6 |
Drilling Diameter (Φmm) |
113.5mm from corner to centerx113.5mm from corner to center (7x8) (heightxwidth) |
