| Type of Product | Automotive Micro Quadlock System |
| Type | housing |
| Color | Black, purple |
| Model No | 3-1534904-4 |
Type of Product |
Automotive Micro Quadlock System |
Type |
housing |
Color |
Black, purple |
Model No |
3-1534904-4 |
Country of Origin |
Japan |
Monotaro ID |
47345613 |
RoHS Directive |
Correspondence |
Depth (mm) |
42 |
Width (mm) |
80.1 |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
No. of Contacts |
94 |
Housing Material |
Glass fiber reinforced PBT |
Height (mm) |
29 |
Specifications |

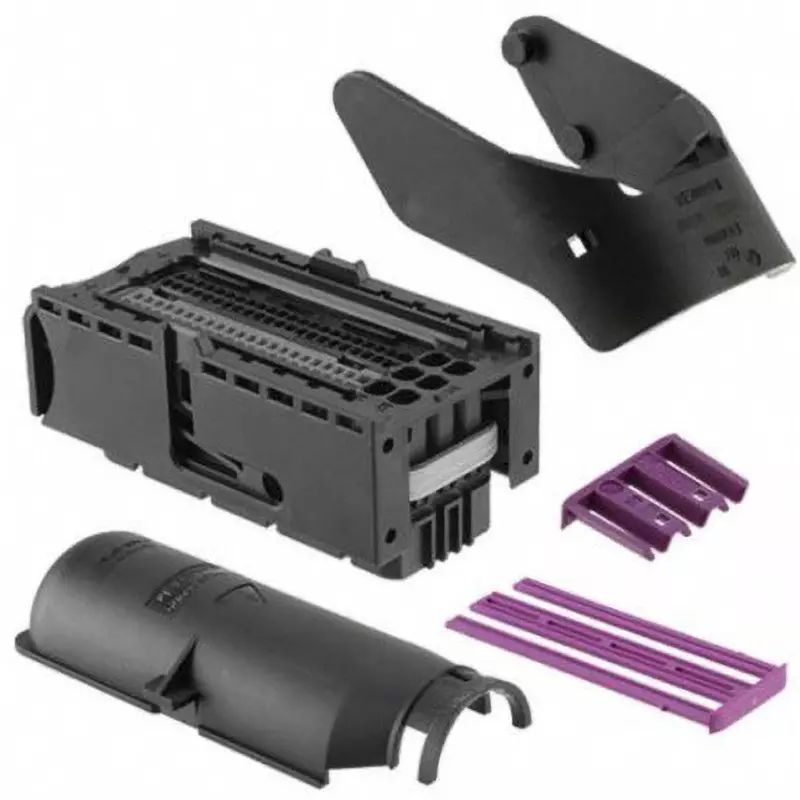

TE Connectivity MQS Micro Quad Lock System Connector Housing. The MQS 2.54 mm interconnect system provides high density connectors with a compact and rugged construction that meets the high functional requirements of automotive applications. This MQS pin and receptacle housing are used to accommodate MQS contacts. This MQS housing is available in a hybrid type designed to accommodate multiple contact type combinations. The contact's stainless steel locking lance provides a high primary terminal locking force that holds the contact securely in the connector housing. A shield type of this housing is available for waterproof protection, and additional wire seals can be purchased separately. This MQS connector housing is available with a polarity / keying option to prevent mismating. Some of these connector housings have additional accessories including covers, levers and retainer housings. Features and benefits. High density, compact design Integrated primary terminal locking force Seal type for waterproof connection Polarity and keying prevent mis-mating. Product application information. This MQS 2.54 mm connector is required for automotive applications Designed to meet stringent requirements. Major applications include powertrain systems, safety and security systems, convenience, driver information, body and chassis systems. |
Import Country |
Direct Import from Japan |
Male/Female(A/B) |
Female |
Series Type |
Micro Quadlock System |
