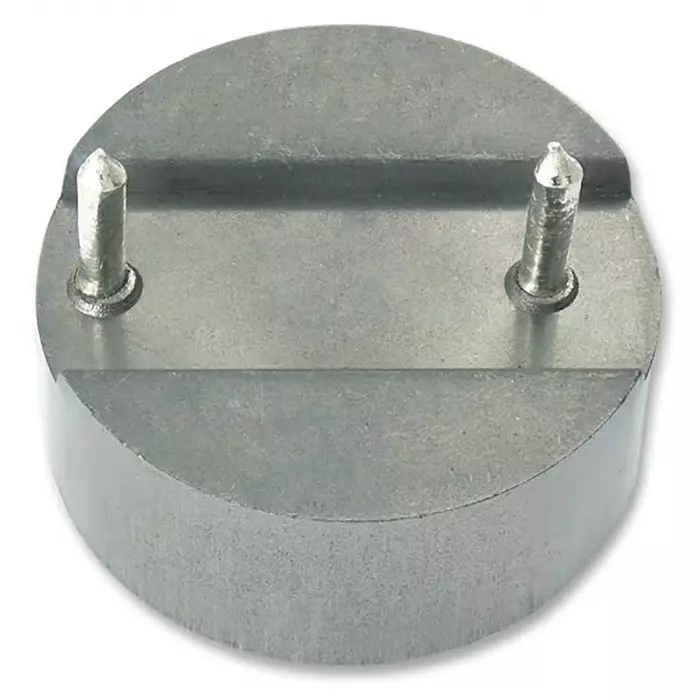

Vishay Leaded Inductor 0.92 mΩ DC Resistance 66 A Current 1 μH Inductance, IHTH0750IZEB1R0M5A

Name: Vishay Leaded Inductor 0.92 mΩ DC Resistance 66 A Current 1 μH Inductance, IHTH0750IZEB1R0M5A
Brand: Vishay
SKU: ELE.ELE.128782316
Price: 506 INR
Availability: InStock

Visit the Vishay Store

Available offers

Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features

Type of Product	Leaded Inductor
Height	8.7 mm
Model No	IHTH0750IZEB1R0M5A
Dimension	19.17 (Dia.)x8.7 mm

More Vishay Electrical Spare & Accessories products More Electrical Spare & Accessories products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

description

Type of Product	Leaded Inductor
Height	8.7 mm
Model No	IHTH0750IZEB1R0M5A
Dimension	19.17 (Dia.)x8.7 mm
Series	IHTH-0750IZ-5A
Country of Origin	USA
Pack of	1 Piece
Mounting Type	Radial
Diameter	19.17 mm
Terminal Type	Through Hole
Maximum Operating Temperature	+155°C
Minimum Operating Temperature	-55°C
DC Resistance	0.92 mΩ
Tolerance	±20%
Inductance	1 μH
Self Resonant Frequency	35.7 MHz
Name of Manufacturer/Packer/Importer	RS Components & Controls (I) Ltd
Maximum DC Current	66 A
Lead Diameter	1.8 mm
Lead Pitch	12.37 mm
Distrelec Product Id	30216659
