Dimension | 93 (Dia.) x 38mm |

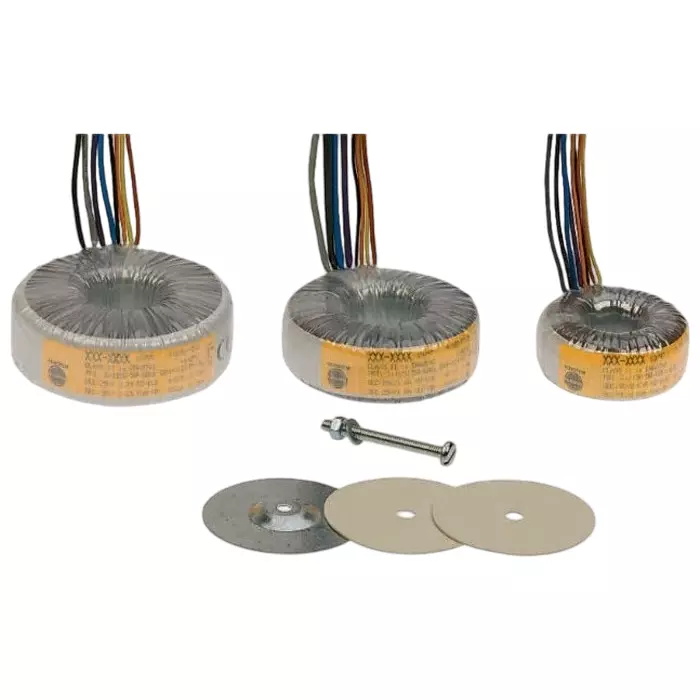

Type of Product | Toroidal Transformer |
Power Rating | 80VA |
Weight | 900g |
Dimension |
93 (Dia.) x 38mm |
Type of Product |
Toroidal Transformer |
Power Rating |
80VA |
Weight |
900g |
Country of Origin |
United Kingdom |
Secondary Current |
2.22A |
No. Of Output |
2 |
Secondary Voltage Rating |
2 x 18V ac |
Primary Voltage Rating |
115 V ac, 230 V ac |
Maximum Operating Frequency |
60Hz |
Maximum Temperature |
+40°C |
Diameter |
93 mm |
Termination Type |
Leads |
Height |
38mm |
Name of Manufacturer/Packer/Importer |
Nuvotem Talema |
Minimum Operating Frequency |
50Hz |
Manufacturer Part Number |
92423-P2S2 |
