Dimension | 80 (Dia.) x 33mm |

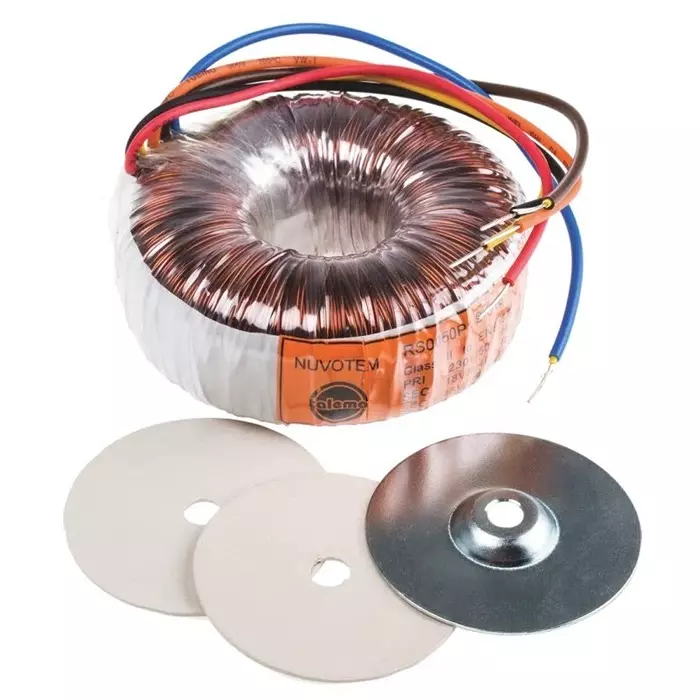

Type of Product | Toroidal Transformer |
Power Rating | 50VA |
Weight | 650g |
Dimension |
80 (Dia.) x 33mm |
Type of Product |
Toroidal Transformer |
Power Rating |
50VA |
Weight |
650g |
Country of Origin |
United Kingdom |
Secondary Current |
1.39A |
No. Of Output |
2 |
Secondary Voltage Rating |
2 x 18V ac |
Primary Voltage Rating |
230V ac |
Maximum Operating Frequency |
450Hz |
Maximum Temperature |
+120°C |
Diameter |
80 mm |
Termination Type |
Copper Conductor Termination Wire |
Height |
33mm |
Isolation Voltage |
4.5kV ac |
Minimum Temperature |
0°C |
Name of Manufacturer/Packer/Importer |
Nuvotem Talema |
Manufacturer Part Number |
0050P1-2-018 |
