| Dimension | 70 (Dia.) x 32mm |

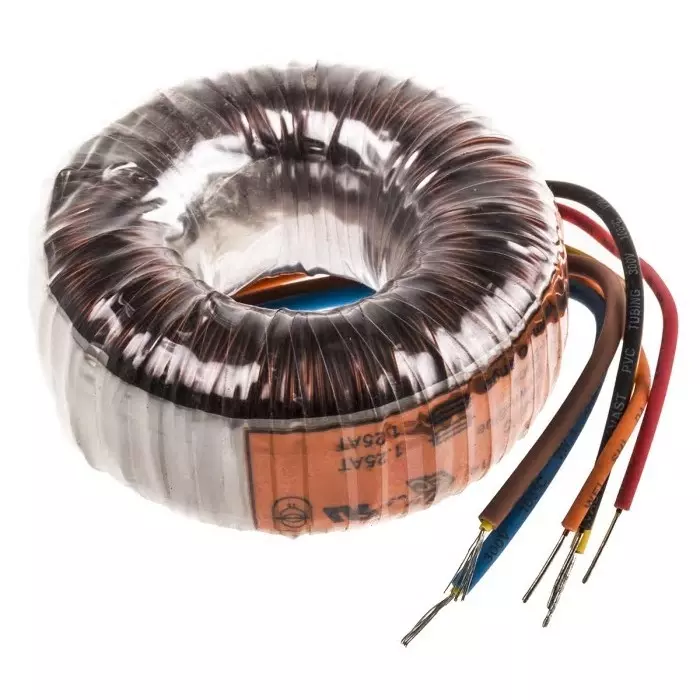

| Type of Product | Toroidal Transformer |
| Power Rating | 30VA |
| Weight | 450g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Dimension |
70 (Dia.) x 32mm |
Type of Product |
Toroidal Transformer |
Power Rating |
30VA |
Weight |
450g |
Country of Origin |
India |
Secondary Current |
1.25A |
No. Of Output |
2 |
Secondary Voltage Rating |
2 x 12V ac |
Primary Voltage Rating |
230V ac |
Maximum Operating Frequency |
450Hz |
Maximum Temperature |
+120°C |
Diameter |
70 mm |
Termination Type |
Copper Conductor Termination Wire |
Height |
32mm |
Isolation Voltage |
4.5kV ac |
Minimum Temperature |
0°C |
Name of Manufacturer/Packer/Importer |
Nuvotem Talema |
Manufacturer Part Number |
0030P1-2-012 |
